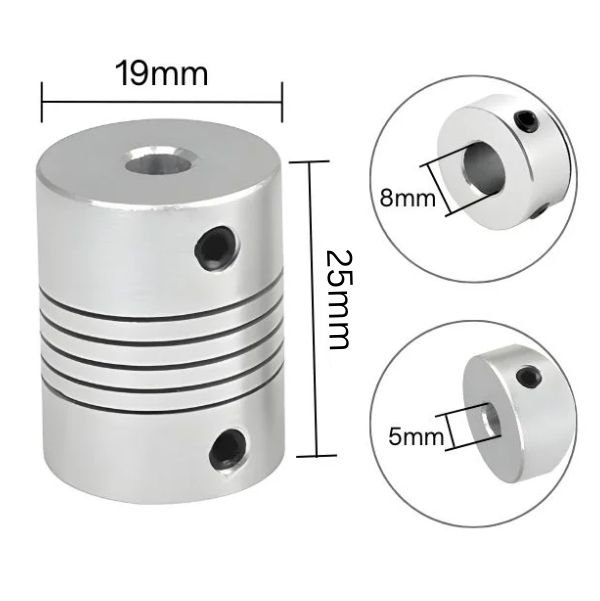

The Flexible Aluminum Coupler 5mm to 8mm Helical Shaft is an aluminium coupling with 25mm length, 19mm outer diameter, 5mm bore on one end and 8mm bore on the other, featuring a helical spiral cut through the body for shaft flexibility in motion control builds. This 5mm to 8mm coupler is the standard coupler used to connect a NEMA 17 stepper motor’s 5mm output shaft to an 8mm lead screw or ball screw — the exact pairing used on the Z-axis of most desktop 3D printers and small CNC routers where the stepper drives vertical movement through a threaded rod.
The helical cut through this 8mm coupler’s aluminum body is the spiral groove allows the two shaft ends to deflect slightly relative to each other, absorbing small angular misalignment between the stepper shaft and lead screw axes that would otherwise transmit as vibration and binding into the linear motion system. A rigid coupler in the same position would amplify any shaft offset into noise, bearing wear, and reduced positional accuracy in a 3D printer or CNC build.
the helical cut that provides flexibility also reduces the coupler’s maximum torque capacity compared to a solid rigid coupler — overloading this flexible shaft coupler with very high torque applications can cause the helical section to wind or twist permanently. Available from StemVolt, your trusted destination for robotics components and STEM DIY kits at competitive prices. This 5mm to 8mm aluminum coupler is ideal for CNC machines, 3D printers, robotics, and motion control systems.
Related Product:
- Checkout Aluminum RC Servo Horn Arm FUTABA
Features:
- Helical cut absorbs angular and parallel shaft misalignment
- 5mm to 8mm different bore sizes for stepper-to-lead-screw connection
- 25mm × 19mm OD — standard 3D printer and CNC Z-axis coupler size
- Aluminum body lightweight with moderate torque transmission capacity
Technical Specifications:
Applications:
- Helical Coupler used for 3D printer Z-axis NEMA 17 lead screw build
- CNC uses 5mm to 8mm coupler for stepper to ball screw connect
- Laser engraver uses 8mm coupler for Z-axis vertical motion build
- DIY CNC uses flexible shaft coupler for axis motor lead screw drive
Package Includes:
-
1 x Flexible Aluminum Coupler 5mm to 8mm Helical Shaft
