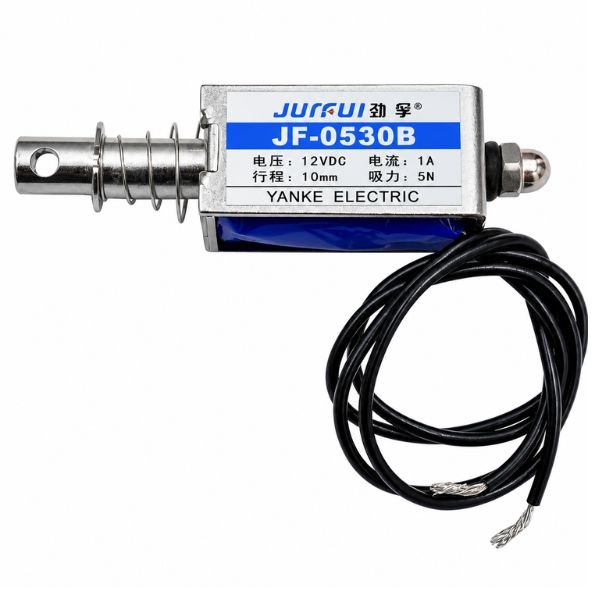

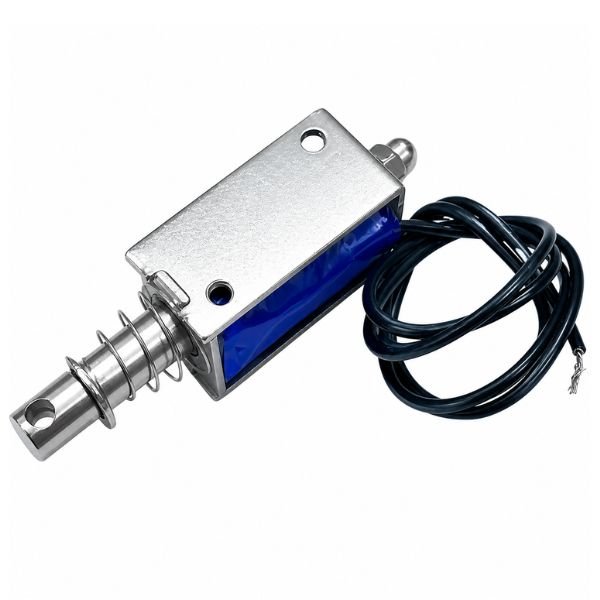

JF-0530B DC 12V Push-Pull Linear Solenoid Electromagnet Actuator

The JF-0530B DC 12V Push-Pull Linear Solenoid Electromagnet Actuator is a linear solenoid actuator operating at 12V DC, drawing 1A current, with a 10mm stroke and 5N force output, designed for automation and robotics applications. An important wiring consideration for this Electromagnet Actuator is that an Arduino or microcontroller digital output pin cannot directly drive its 1A coil — the pin’s own current limit would be exceeded, requiring an intermediate transistor driver or relay module to switch the 12V supply, with a flyback protection diode across the solenoid terminals to absorb back-EMF voltage spikes when the coil de-energizes.

The linear solenoid 12v’s 10mm stroke is deliberately short relative to larger industrial solenoids — this length suits latching, locking, and small mechanical catch-release applications where the plunger only needs to travel a short distance to engage or disengage a mechanism, rather than pushing an object across a longer distance. This jf 0530b 12v’s push pull configuration moves the plunger actively in both directions rather than relying on a return spring, giving positive mechanical control in both the energized and de-energized states.

One practical trade-off: because this linear solenoid actuator requires an external driver circuit between the Arduino and solenoid, first-time builders should account for the transistor, relay module, and flyback diode components in their bill of materials before beginning the build, as these are not included with the solenoid itself. Available from StemVolt, well-suited for enthusiast and maker building relay-driven solenoid control systems and electromagnet actuator automation projects.

Related Product:

• Checkout 12V DC 1/2 Inch Electric Solenoid Valve

Features:

• Rated force of 5N handles light mechanical triggering and latch release tasks
• Stroke of 10mm covers standard short-travel push-pull actuation requirements
• Current draw of 1A at 12V switches cleanly through a MOSFET or relay driver
• Linear solenoid actuator type moves plunger in a straight line without linkages

Technical specifications:

 Applications:

• JF-0530B used for Arduino transistor-driven solenoid latch build
• College project uses Electromagnet Actuator for relay driver demo
• Security box uses linear solenoid 12v for India catch-release lock
• Robotics uses jf 0530b 12v for gripper trigger mechanism
• Vending uses linear solenoid actuator for dispensing latch release

Package includes:

• 1 x JF-0530B DC 12V Push-Pull Linear Solenoid
