FlySky FS-i6S 10-Channel Remote with FS-iA10B Receiver

The FlySky FS-i6S 10-Channel Remote with FS-iA10B Receiver is a complete 2.4GHz digital radio control system that includes both the FS-i6S transmitter and the FS-iA10B 10-channel receiver in one package, providing everything the drone or RC aircraft builder needs to control the flight controller from the ground. The fsi6s transmitter and receiver system operates on 2.4GHz using FlySky’s AFHDS 2A (Automatic Frequency Hopping Digital System 2nd Generation) protocol, which continuously hops across the 2.4GHz band to maintain a stable, interference-resistant link between the transmitter and the receiver mounted on the drone.

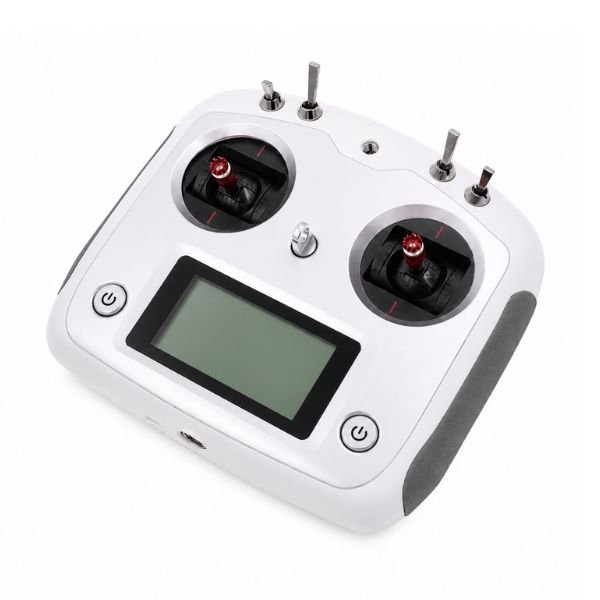

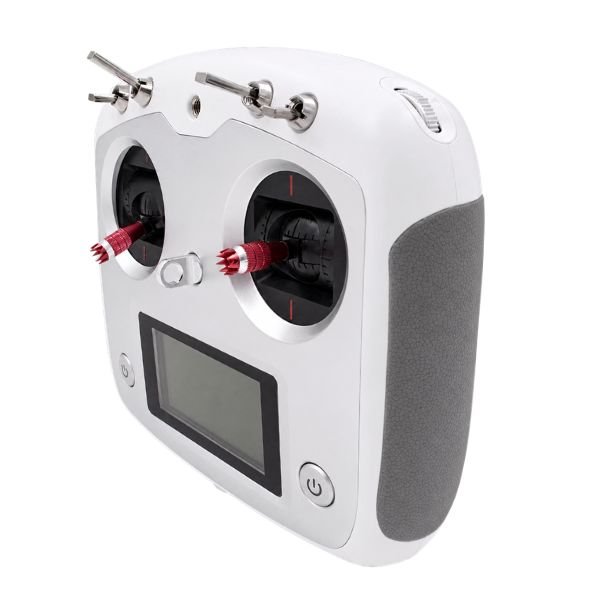

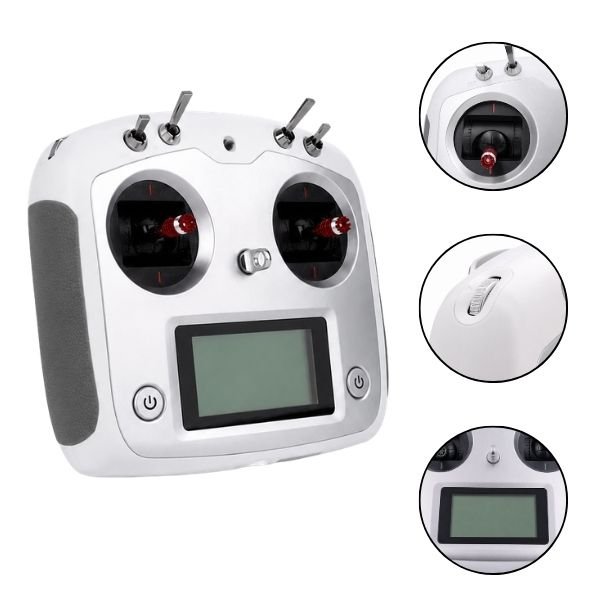

The FS-i6S transmitter features a touchscreen interface alongside its physical gimbals and switches — a notable feature in the budget RC transmitter segment that allows menu navigation, model setup, and parameter configuration through the touch display rather than scroll buttons, making it more accessible for drone builders setting up their first APM or Pixhawk-based quadcopter without navigating complex button menus. The flysky rc controller configuration as default — the standard layout where the left stick controls throttle on the vertical axis and yaw on the horizontal axis, and the right stick controls pitch and roll — which is the expected layout for F450 and F550 quadcopter drones.

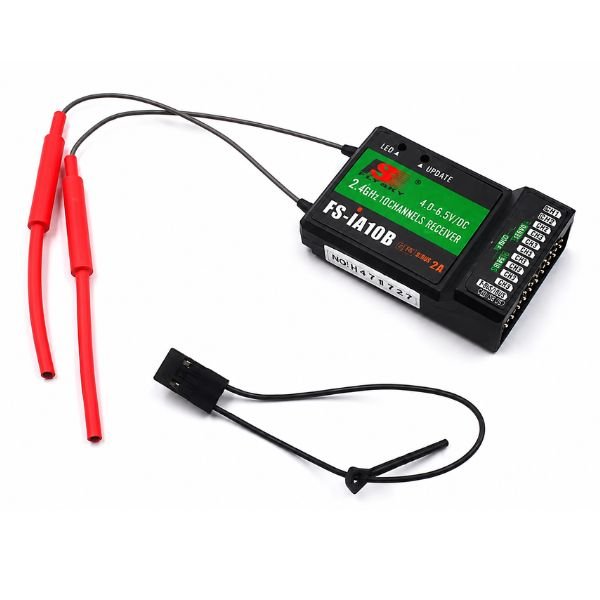

The flysky transmitter and receiver remote provides 10 independent channels, offering dedicated channels for all basic flight controls plus auxiliary switches for flight mode selection on APM and Pixhawk flight controllers — the extra channels beyond the basic four allow the builder to assign flight mode switches, RTH activation, landing gear, and camera trigger to physical switches on the transmitter. The FS-iA10B receiver outputs both iBUS (a digital serial protocol) and PPM signals, compatible with the Pixhawk 2.4.8, APM 2.8, and KK2.1.5 flight controllers.

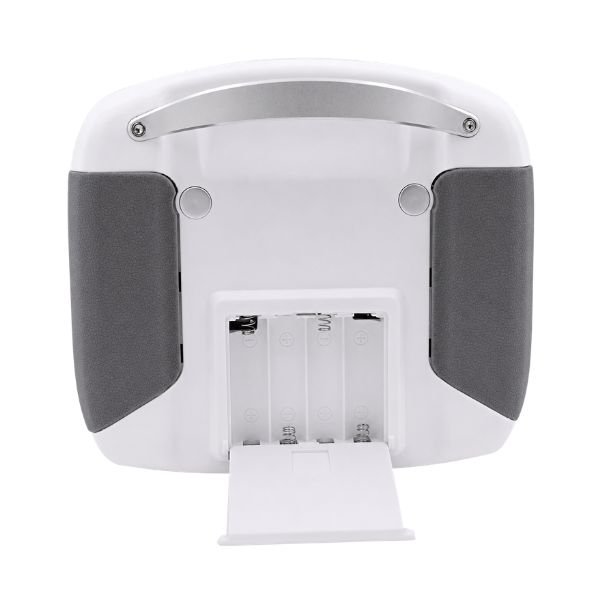

The flysky fs-i6s 10 channel transmitter is powered by four AA batteries (not included) at 6V DC, includes a DSC port for connecting to a PC flight simulator for practice before flying, and features a built-in low voltage warning that alerts the pilot when the transmitter batteries need replacement. This wireless transmitter and receiver is ideal for RC drone builds. Available from StemVolt.

Related Products:

• Checkout FlySky FS-CT6B 2.4G 6CH Radio System

Features:

• Touchscreen display — menu navigation without scroll buttons on transmitter
• 10-channel AFHDS 2A — stable 2.4GHz frequency hopping interference-resistant link
• FS-iA10B receiver outputs iBUS and PPM for APM Pixhawk KK2.1.5
• Mode 2 default — standard Indian drone build tutorial control layout
• DSC port for PC flight simulator practice before first real flight

Technical Specifications:

Applications:

• F450 APM Pixhawk quadcopter remote control with 10-channel FS-i6S set
• India maker controls F550 hexacopter using flysky transmitter and receiver
• STEM drone project for fsi6s transmitter and receiver 2.4GHz control demo
• KK2.1.5 beginner quadcopter radio control with Mode 2 FlySky FS-i6S
• College wireless transmitter and receiver for drone remote control lab build

Package Includes:

• 1 x FlySky FS-i6S 10-Channel Remote with FS-iA10B Receiver
