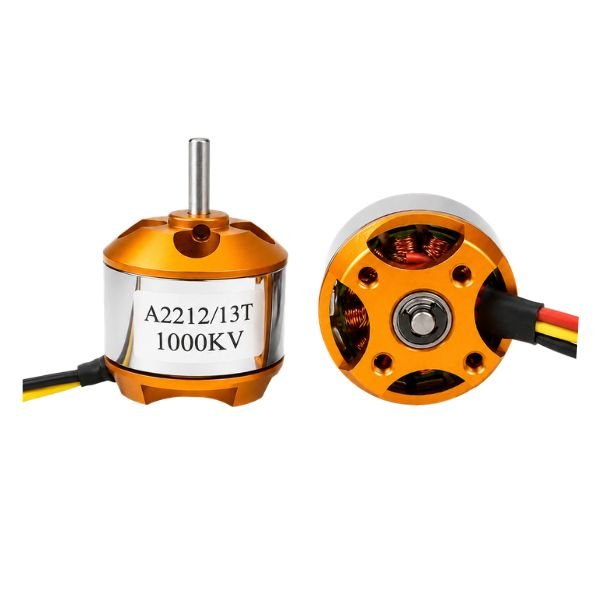

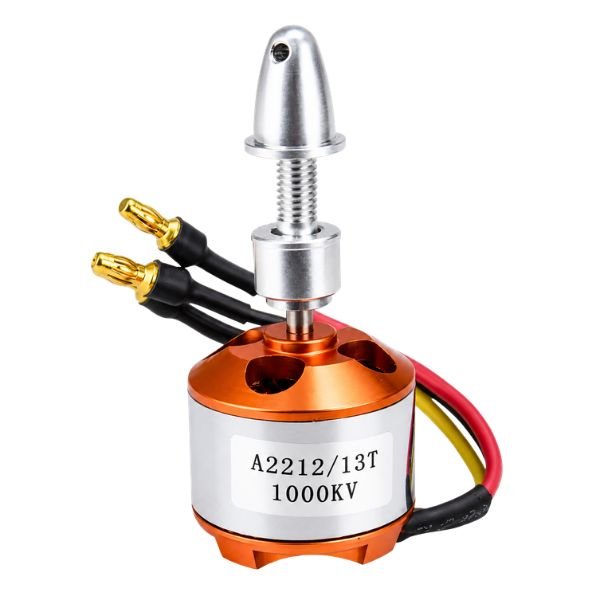

A2212 1000KV Brushless Motor For RC Airplane and Quadcopter

The A2212 1000KV Brushless Motor sits at the versatile mid-point of the A2212 motor series — above the heavy-lift 920KV configuration suited to large 9 to 10 inch props on F450 class quadcopters, and below the high-speed 2200KV configuration suited to small 5 to 7 inch props on RC planes and racing builds — making the 1000KV an adaptable motor for builders who want one motor that works across both medium-size quadcopter builds and fixed-wing RC aircraft using 8 to 9 inch propellers on 2S or 3S LiPo. On a 3S LiPo at 11.1V, the A2212 brushless motor reaches approximately 11,100 RPM no-load, placing its performance in the range suited to 8 to 9 inch propellers for balanced thrust and efficiency across both plane and quad applications.

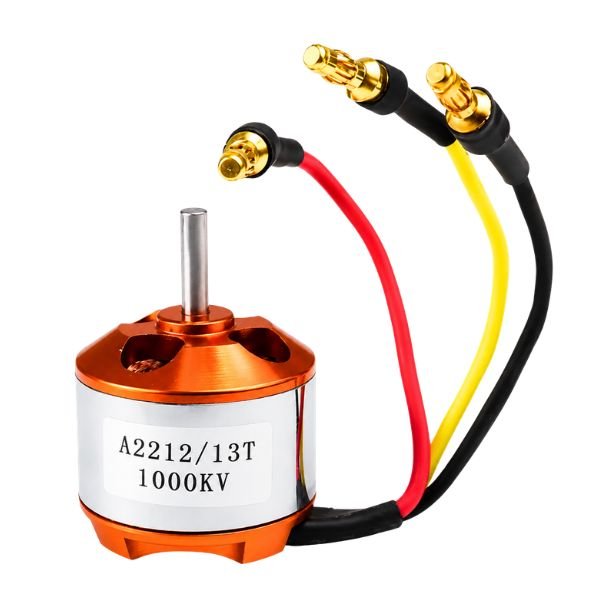

The brushless motor for drone is rated at 12A nominal continuous current for 60 seconds — a more specific continuous rating than many motors in this class that list only maximum burst current — with an 18A minimum ESC requirement and 30A recommended ESC rating, giving the builder flexibility to use a 20A or 30A ESC depending on what is already available for the build. The bldc motor 1000kv draws only 500mA at no load at 10V, meaning idle current consumption at low throttle is very low and battery drain during slow or hovering flight is minimal compared to higher-KV motors at the same throttle setting. The quadcopter drone motor comes with 3.5mm bullet connectors already fitted to the three motor phase wires for direct connection to the ESC output leads. The rc drone motor direction is reversible by swapping any two of the three phase wire connections.

Available from StemVolt, offering quality electronics parts at competitive prices. This bldc motor 1000kv is ideal for medium RC plane fixed-wing and 8-9 inch prop quadcopter drone motor builds in India.

Related Products:

• Checkout 9450 Carbon Fiber Propeller

Features:

• 1000KV mid-range suits both RC plane and quadcopter 8-9 inch builds
• 12A nominal 60s continuous current — specific rated spec not burst-only
• 18A min / 30A recommended — flexible ESC pairing for existing builds
• 500mA no-load current — low idle drain at low throttle settings
• 3.5mm bullet connectors pre-fitted for direct ESC phase wire connection

Technical Specifications:

Applications:

• Medium RC foam plane nose motor with 8-inch prop on 3S LiPo
• India maker builds mid-range quadcopter with a2212 1000kv brushless motor
• STEM drone project for bldc motor 1000kv versatile mid-KV demo build
• Hybrid RC plane-to-quad conversion motor using 1000KV on 8-9 inch prop
• College rc drone motor for 1000KV mid-range brushless motor lab build

Package Includes:

•  1 x A2212 1000KV Brushless Motor
