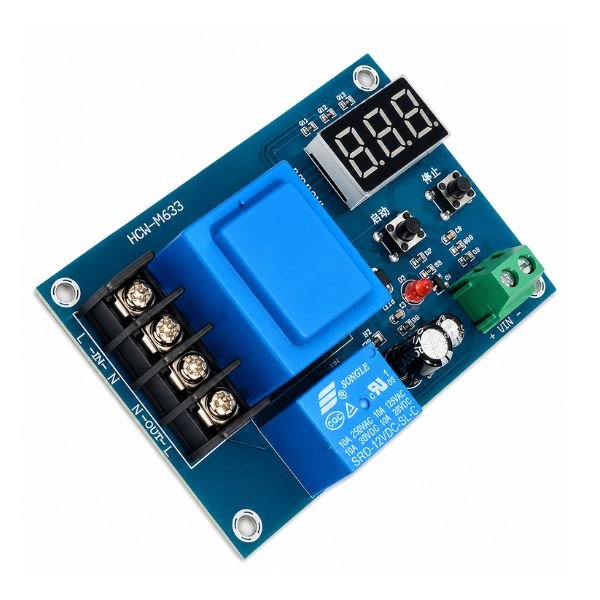

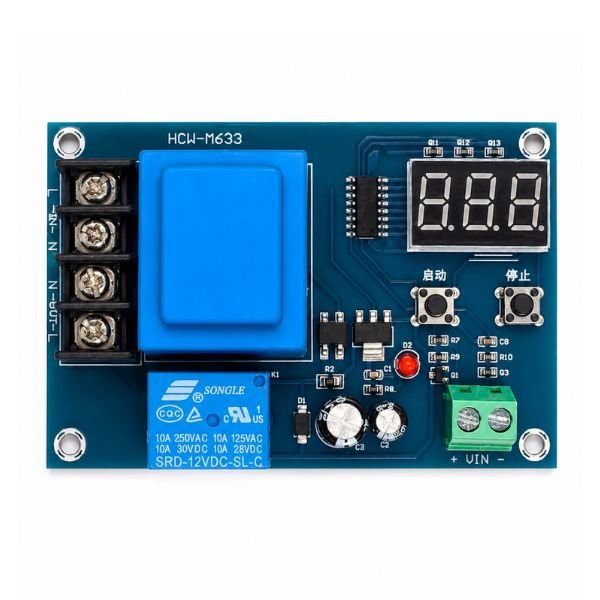

XH-M633 Lithium Battery Charging Control Module – LED Display

The XH-M633 Lithium Battery Charging Control Module is a PCB-based lithium battery charge controller with an onboard LED display that shows the real-time charging voltage and charge status indicators — different from standalone chargers, the xh m633 module is a board-level controller that the builder integrates into their own charging system, solar panel setup, or DIY power bank by connecting a DC input source (10V to 30V) on one side and the lithium battery on the output side, with the module’s internal control circuit managing the charge current and voltage automatically to protect the battery from overcharging.

The LED display provides 0.1V accuracy voltage readout so the builder can monitor the exact charging voltage and verify the charge state at any time without a separate multimeter.The xh m633 lithium battery charging control module supports a maximum output current of 10A, making it suitable for charging larger capacity Li-ion and LiPo battery packs at higher current rates than typical USB-based chargers allow. The 10-30V DC input range accepts power from solar panels, regulated DC adapters, and bench power supplies commonly used in maker and electronics lab setups.

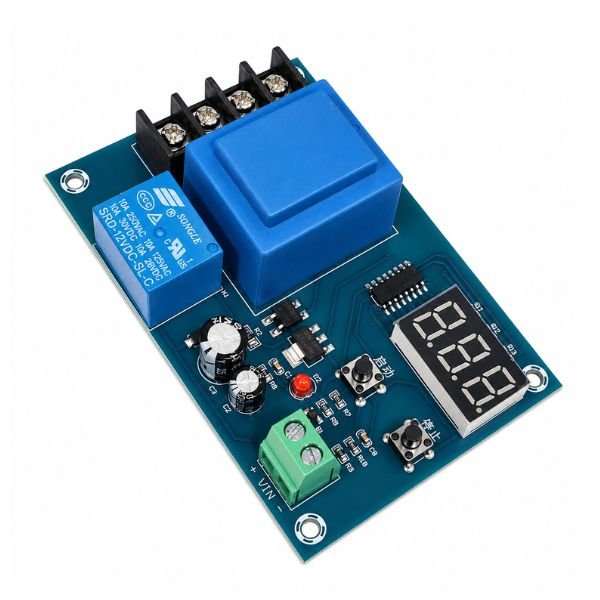

The xh m633 module with led display gives both voltage reading and charging status indication in one compact board, eliminating the need for a separate voltage display module in DIY charging builds. Available on StemVolt. This lithium battery charging module with led display is ideal for solar charging DIY power bank Li-ion pack and STEM project for battery charging control.

Related Products:

• Checkout PDC004-PD 12V PD Decoy Module

Features:

• LED voltage display — 0.1V accuracy real-time charging voltage readout
• 10-30V DC input — solar panel adapter or bench supply compatible
• 10A max output — charges larger Li-ion packs at higher current
• Automatic CC/CV control — protects battery from overcharge automatically
• Board-level module — integrates into custom DIY charging system builds

Technical Specifications:

 Applications:

• Solar panel lithium battery charging station using xh m633 module
• Maker builds DIY power bank with xh m633 lithium charging module
• project for lithium battery charging control module 0.1V LED demo
• Off-grid Li-ion pack charging with xh m633 module with led display
• lithium battery charging module with led display for CC/CV labs

Package Include:

• 1 x XH-M633 Lithium Battery Charging Control Module – LED Display
