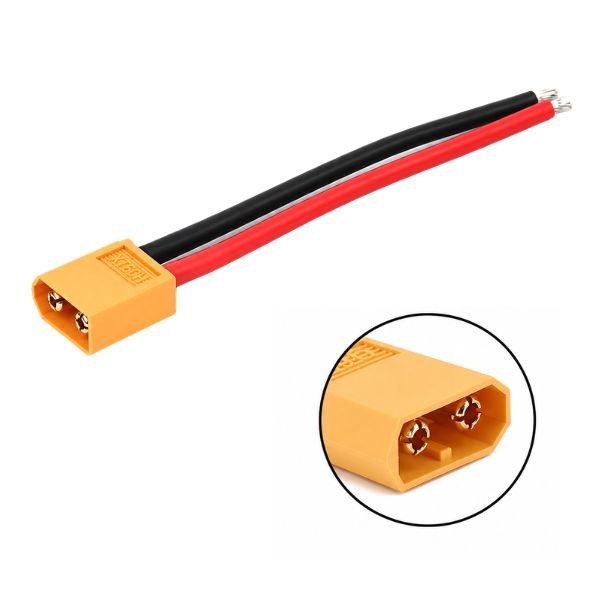

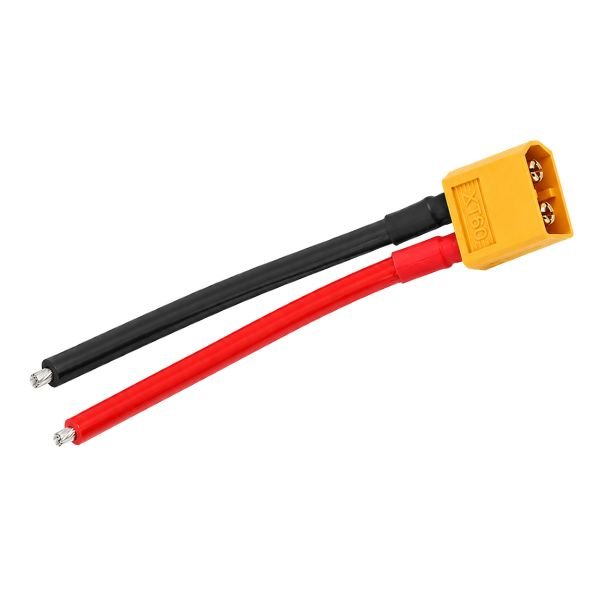

The XT60 Male Connector with Wire is a pre-wired high-current battery connector with 14AWG silicone wire pre-attached, rated at 60A continuous current and 500V DC — the male variant of the XT60 standard connector used throughout RC vehicles, drones, LiPo battery packs, and robotics power systems in India. The male connector has two gold-plated pins that plug into a matching XT60 female socket on an ESC, LiPo charger, or battery holder, and is typically soldered to the output leads of a LiPo battery pack or to the input lead of a power distribution board. This RC connector cable’s 10cm pre-attached silicone wire provides a soldering point away from the connector housing — which is important because holding a soldering iron too close to the XT60 plastic body can soften or melt the housing, and having wire already attached gives the builder a safe distance to work from.
The xt60 connector with cable’s 14AWG silicone wire is specifically chosen to match the connector’s 60A rating — thinner wire would overheat at full current, and silicone insulation is more flexible and heat-resistant than standard PVC wire insulation, making it better suited for the tight cable routing inside RC car bodies, drone frames, and robot chassis where wires are bent repeatedly during assembly and use. The adapter cable for lipo battery’s 500V DC rating provides substantial headroom well above the voltages of standard 2S to 6S LiPo packs used in maker and RC builds in India.
Available from StemVolt. This xt60 male connector wire is ideal for LiPo battery RC drone robot and high-current power connection builds in India.
Related Product:
- Checkout T Plug Deans Connector
Features:
- XT60 male pins plug into female ESC charger and battery sockets
- 60A continuous rating for LiPo RC drone and robot power leads
- 14AWG silicone wire flexible and heat-resistant for tight cable routing
- 10cm pre-attached wire provides safe soldering distance from housing
- 500V DC rating covers all standard 2S to 6S LiPo voltages
Technical Specifications:
Applications:
- XT60 Male Connector With Wire for RC car, drone and robots
- India maker wires xt60 male connector to DIY LiPo battery pack
- STEM project for xt60 connector with cable high-current power demo
- ESC input power lead replacement on RC drone or robot chassis
- Adapter cable for lipo battery for high-current connector lab
Package Includes:
-
1 x XT60 Male Connector With Wire
