100A Power Distribution Board for Multirotor Quadcopter and Drone ESC

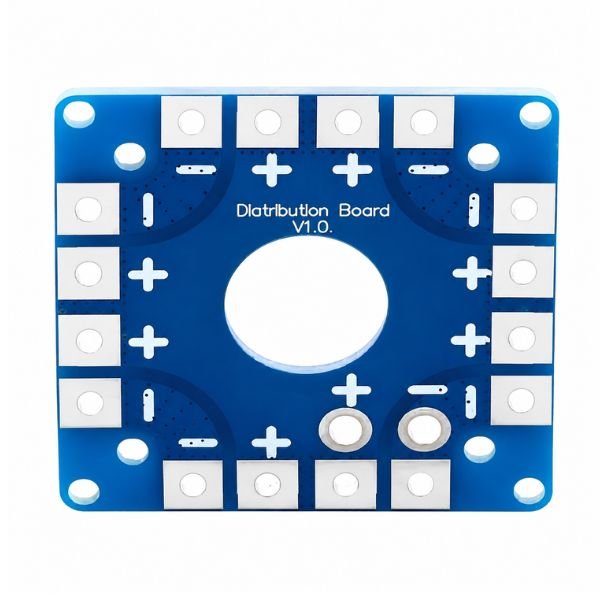

The 100A Power Distribution Board for Multirotor Quadcopter and Drone is a 50×50mm glass fiber PCB that connects the LiPo battery to all the ESCs on a multi-rotor drone through copper PCB traces instead of a tangled parallel wire harness — the battery’s positive and negative leads solder to the center pads of the drone power distribution board, and each ESC solders to one of the output pads around the board, giving every motor a clean, direct power connection from the battery through short solder joints on a rigid PCB. The 100A rating refers to the total current capacity across all outputs combined — at full throttle on a 4S quadcopter, all four motors draw current simultaneously through the PDB, and the board handles up to 100A of combined input without overheating the traces.

The pdb for esc battery provides up to 20A per output pad when used in quadcopter configuration — four outputs, each rated 20A, totaling 80A under balanced load — and adjusts to 10A per output when configured for an octocopter with eight outputs sharing the same 100A total. The 100 amp pdb for quadcopter’s compact 50×50×2mm glass fiber construction fits within the center stack of most 250 to 450 class drone frames, and the 2mm board thickness keeps the stack height minimal inside tight frame centers where every millimeter of clearance matters for component fit.

Available from StemVolt, offering quality electronics parts at competitive prices. This quadcopter pdb board is ideal for 250 to 450 class quadcopter octocopter LiPo ESC power distribution drone builds in India.

Related Product:

• Checkout F550 Hexacopter Frame Kit

Features:

• 100A total input from LiPo battery across all ESC outputs
• 20A per output on quadcopter — 10A per output on octocopter
• 50×50mm fits center stack of 250 to 450 class drone frames
• Glass fiber PCB copper traces replace messy parallel wire harness
• 2mm thin board keeps stack height minimal in tight frame centers

Technical Specifications:

Applications:

• 250 class FPV quadcopter ESC power distribution from 3S LiPo
• India maker wires 100A PDB on 450 class quadcopter build frame
• STEM drone project for pdb for esc battery power wiring demo
• Octocopter multi-motor power distribution on 100 amp PDB board
• College 100 amp pdb for quadcopter ESC wiring and power lab build

Package Includes:

• 1 x 100A Power Distribution Board
