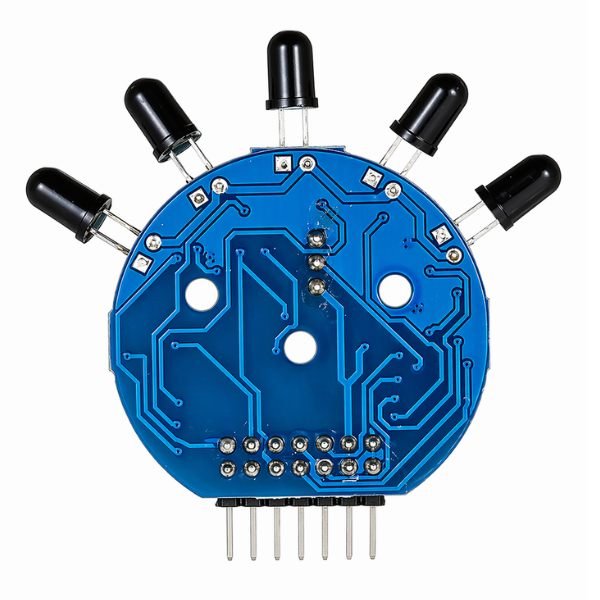

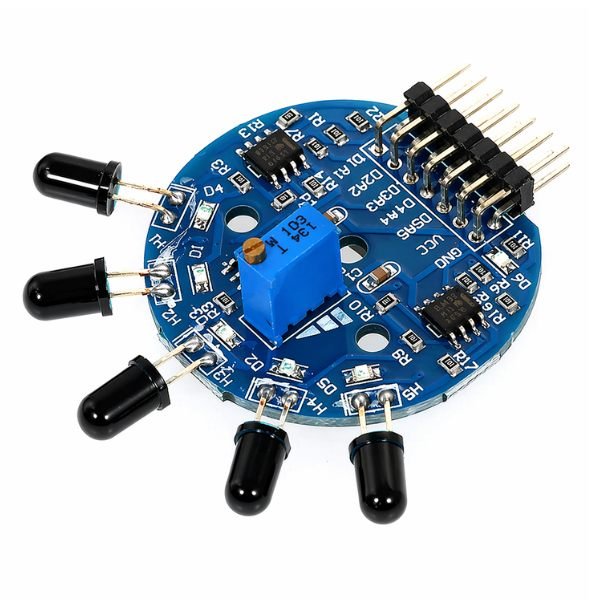

The 5-Channel Flame Sensor Module Board is a 55mm diameter, 15mm tall board with 5 IR flame-sensing channels arranged to provide over 120 degrees of detection coverage at approximately 50cm range, each offering both analog and digital outputs, operating from 3.3V to 9V. The 5 channel flame sensor directly addresses the narrow field-of-view limitation of single-sensor flame modules — where a single 50-degree sensor requires careful aiming, this board’s 5 radially-arranged channels together cover a much wider arc around the board.
The flame sensor price reflects this board’s multi-channel design, which offers two practical advantages over single-sensor flame detection first, as a flame detection sensor, the combined 120°coverage means flames anywhere in a wide arc will trigger at least one channel without precise aiming; second, since each of the 5 channels reports independently, a 5 channel flame detector sensor can give a rough indication of flame direction based on which specific channel(s) triggered. Per the 5-channel flame sensor datasheet, the 3.3-9V operating range is wider than typical single sensors, adding flexibility for different power rail setups.
the 5 channel flame sensor module requires reading 5 separate analog or digital channels rather than one, increasing the number of I/O pins and code complexity needed compared to single-channel flame sensors. Available at StemVolt, this module is well-suited for learners working on smart safety, fire monitoring, and embedded electronics projects using responsive multi-channel flame sensing technology.
Related Products:
- Checkout LM35 Temperature sensor
- Explore the IR, Ultrasonic and Proximity Sensors
Features:
- 5 radially-arranged IR channels give over 120-degree coverage
- Each channel provides independent analog and digital outputs
- Approximately 50cm detection range per channel for nearby flames
- 3.3V to 9V wider voltage range than single-sensor flame modules
- Channel-by-channel triggering enables rough flame direction estimation
Technical Specifications:
 Applications:
- 5-Channel Flame Board used for Arduino wide-coverage fire alarm build
- Robot uses flame detection sensor for India 360-degree fire patrol build
- Industrial setup uses 5 channel flame detector sensor for wide-area monitoring
- STEM kit uses 5 channel flame sensor module for directional fire learning demo
Package Includes:
- 1 x 5-Channel Flame Sensor Module
