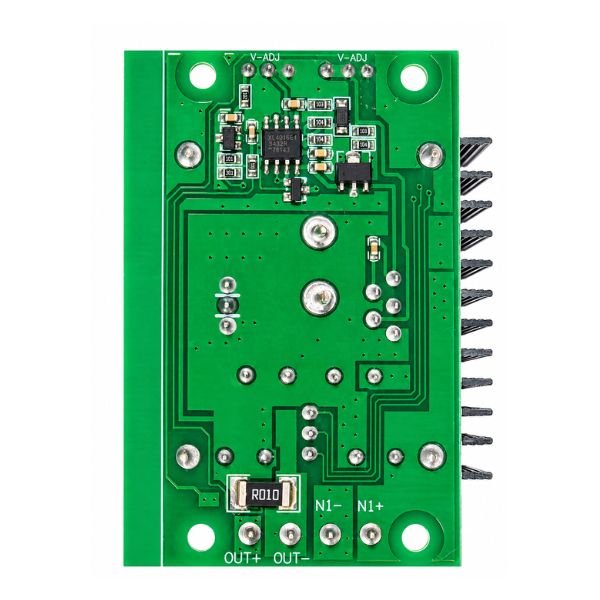

XL4016 300W 10A DC-DC Buck Converter Step-Down Module

The XL4016 300W 10A DC-DC Buck Converter Step-Down Module takes a higher DC input voltage and steps it down to a lower DC output voltage the user sets via an onboard potentiometer. The xl4016 ic handles conversion through high-frequency switching storing energy in an inductor and releasing it at the target voltage – which is far more efficient than a linear regulator that simply burns off the excess voltage as heat. The wide input range of 5V to 40V means this module accepts single-cell Li-Ion packs, 12V car batteries, 24V industrial supplies, and solar panel outputs.

The dc dc buck converter output adjusts from 1.2V to 30V covering virtually any regulated DC voltage a project requires below the input level. A multimeter on the output terminals confirms the set voltage before the load is connected. Maximum output current of 10A and 300W power rating makes the xl4016 10 amp buck converter suitable for high-current loads that smaller 5A modules cannot handle powering brushless motors, high-brightness LED arrays, and multi-device 12V distribution rails from a single higher-voltage source.

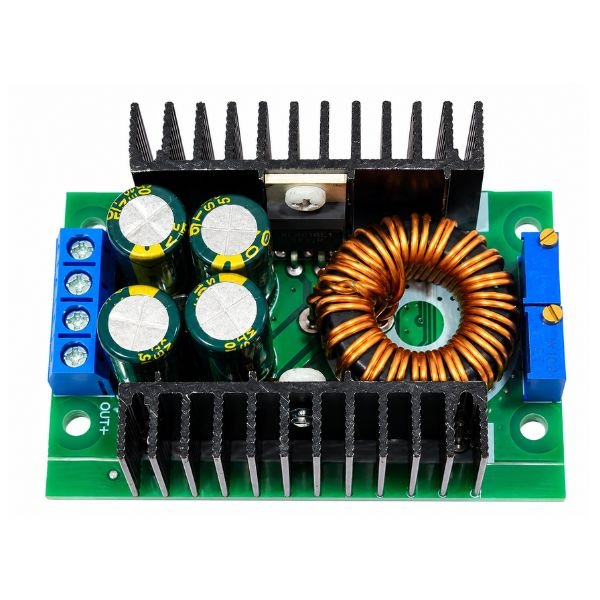

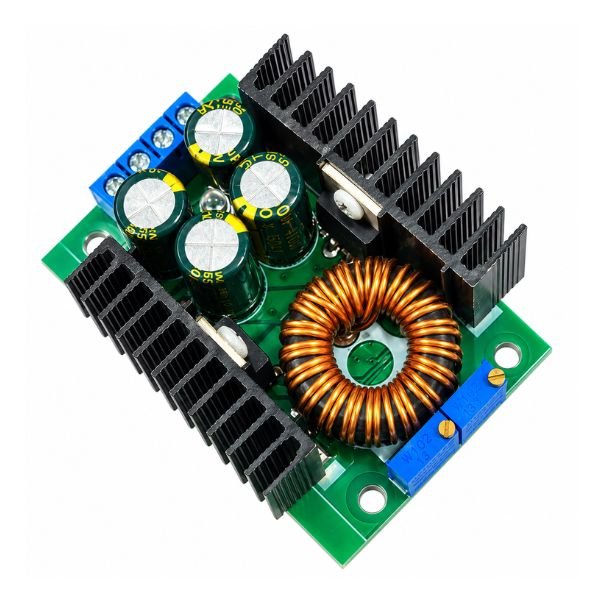

The dual heatsinks (Passive Cooling) on the xl4016 module and output diode provide passive thermal management for sustained high-power operation without a fan. At full 10A output the heatsinks will noticeably warm adequate airflow around the module prevents thermal throttling in enclosed. The step down buck converter suits high-current battery-to-rail regulation, solar charge control, and bench variable power supply. This xl4016 buck converter module is available on StemVolt, and its working on high-power DC regulation and embedded voltage conversion.

Related Product:

• Checkout 150W 12V DC to 220V AC Inverter Boost Module

Features:

• Wide 7V to 40V input range covers 12V batteries, 24V rails, and solar panels.
• Adjustable 1.25V to 35V output handles most regulated DC supply requirements.
• 10A maximum current handles high-power motors, and multi-device loads.
• Dual heatsinks maintain effective passive thermal cooling during heavy operation.
• High 300W maximum power ceiling supports continuous high-load power applictions.

Technical Specifications:

 Applications:

• XL4016 300W 10A DC-DC Buck Converter steps 24V supply to 12V for motor driver
• DC-DC buck converter regulates 36V e-bike battery to 5V USB power for onboard lighting and display controllers.
• xl4016 buck converter powers 12V LED array from 24V solar panel output.
• Step down buck converter regulates 40V CNC supply rail to 5V logic board power.

Package Include:

• 1 x XL4016 300W 10A DC-DC Buck Converter Step-Down Module
