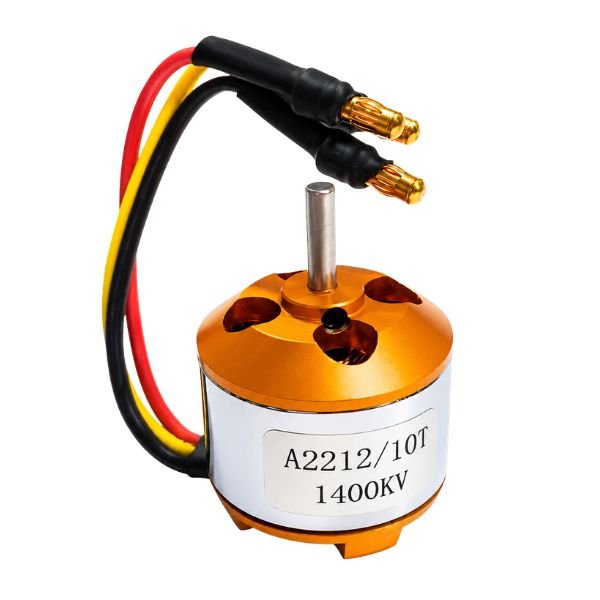

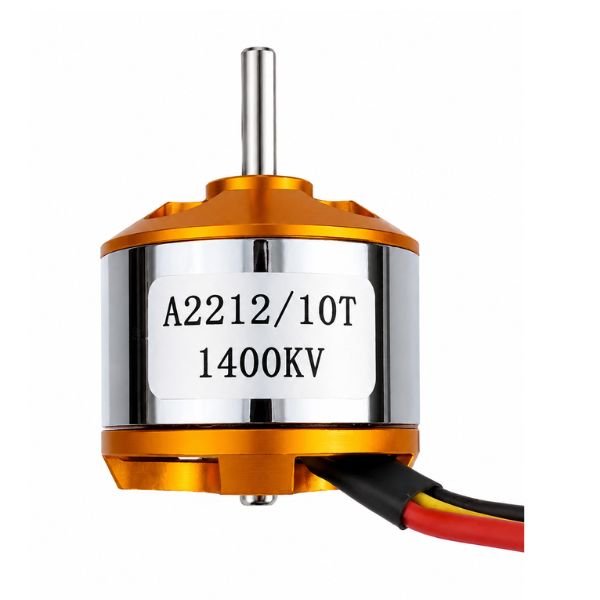

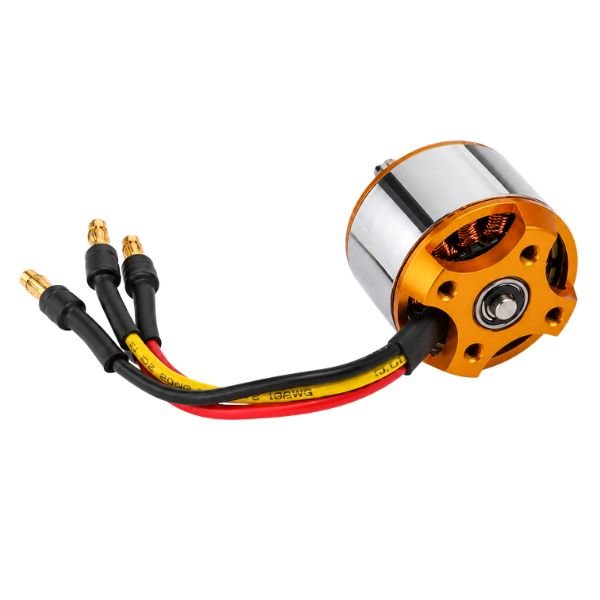

A2212 1400KV Brushless Motor For RC Airplane and Quadcopter

The A2212 1400KV Brushless Motor sits between the 1000KV versatile mid-range and the 2200KV high-speed configurations in the A2212 motor series — at 1400KV, the motor spins at approximately 15,540 RPM on a 3S LiPo at 11.1V, placing its performance in the 7 to 8 inch propeller range where it delivers more agile throttle response and quicker RPM change than the 1000KV variant while still carrying the torque to turn 7 to 8 inch props efficiently for both RC fixed-wing aircraft and 330 to 400mm class quadcopters. This A2212 brushless motor is the choice for builders who want faster, more responsive motor behavior than the 1000KV provides — the higher KV rating means the motor reaches its operating RPM faster after a throttle change, giving sharper control response in FPV freestyle manoeuvres and tighter pitch control on RC fixed-wing builds.

The brushless motor for drone uses the same ESC specification as the 1000KV variant — 18A minimum with 30A recommended — and the same 12A nominal continuous current rating for 60 seconds, meaning builders who already have a 30A ESC from a previous A2212 1000KV build can upgrade directly to the 1400KV motor without changing the ESC, servo lead, or power wiring, only swapping the motor itself. The bldc motor 1400kv draws 500mA at no load at 10V — identical to the 1000KV — giving the same low idle current draw at low throttle settings. The quadcopter drone motor comes with 3.5mm bullet connectors already fitted for direct connection to the ESC phase output leads without additional soldering at the motor end.

Available from StemVolt, offering quality electronics parts at competitive prices. This rc drone motor is ideal for 330-400mm class agile quadcopter and 7-8 inch prop RC airplane motor builds in India.

Related Products:

• Checkout iMAX B6 DC Lipo Battery Balance Charger

Features:

• 1400KV delivers faster throttle response than 1000KV at same voltage
• ~15,540 RPM on 3S suits 7-8 inch prop 330-400mm quad builds
• Same ESC spec as 1000KV — direct motor upgrade without ESC change
• 12A nominal 60s continuous — same rated spec as 1000KV variant
• 3.5mm bullet connectors pre-fitted for plug-in ESC phase connection

Technical Specifications:

Applications:

• 330mm agile quadcopter FPV freestyle build with 7-inch prop motor
• India maker upgrades A2212 1000KV to 1400KV keeping same 30A ESC
• STEM project for bldc motor 1400kv agile throttle response demo build
• 400mm quadcopter class motor for sharper pitch and roll response
• rc drone motor for 1400KV mid-high KV comparison motor lab

Package Includes:

•  1 x A2212 1400KV Brushless Motor
