A2212 1800KV Brushless Motor for RC Airplanes and Quadcopters

The A2212 1800KV Brushless Motor is a high-speed brushless DC outrunner motor in the A2212 format with a 13-turn (13T) stator winding configuration — at 1800KV, the motor spins at approximately 19,980 RPM on a 3S LiPo at 11.1V, placing its performance between the 1400KV agile quadcopter variant and the 2200KV high-speed RC plane motor in the A2212 series, and making it best suited for 6 to 7 inch propellers on fast quadcopters, RC fixed-wing aircraft, RC helicopters, and other high-speed motor applications.

The a2212 brushless motor’s 1800KV rating gives it a notably snappier throttle response compared to lower-KV motors in the same frame, which suits FPV freestyle builds and aerobatic fixed-wing aircraft where sharp, immediate motor response to stick input is valued. The bldc drone motor specification confirms the A2212/13T designation — 13 turns of winding on the stator coils — which is the standard winding count for this KV range in the A2212 stator format, balancing RPM and torque.

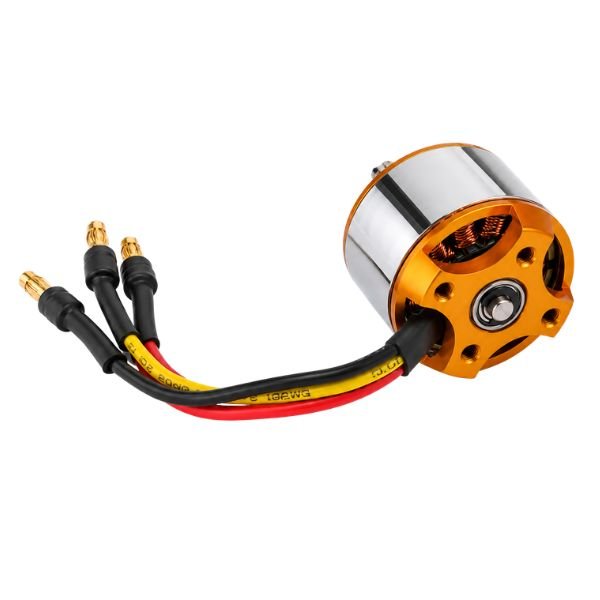

The motor comes with 3.5mm gold bullet connectors pre-soldered to the three phase wires for direct connection to the ESC output leads, and the 3.17mm motor shaft is compatible with the aluminum bullet propeller adapter listed at StemVolt for 3.17mm shaft motors. The 1800kv quadcopter drone motor’s application range extends beyond standard quadcopter builds to include RC helicopters and RC cars, where its high-RPM output suits the higher rotational speed requirements of rotor head and applications.

Related Products:

• Checkout 1045 Drone Aircraft Propeller Blade Set

Features:

• 1800KV 13T winding — snappiest throttle response in A2212 mid-range
• ~19,980 RPM on 3S LiPo for 6-7 inch prop fast quad builds
• Suits quadcopters RC planes helicopters and RC cars in one motor
• 3.5mm bullet connectors pre-soldered for plug-in ESC phase connection
• 3.17mm shaft — compatible with aluminum bullet prop adapter 3.17mm

Technical Specifications:

Applications:

• Fast 6-inch prop quadcopter FPV build with sharp throttle response
• For bldc drone motor 1800KV high-RPM prop demo build
• RC aerobatic plane nose motor for fast snap-roll manoeuvre performance
• 1800kv brushless motor rc plane for high-kv motor comparison lab

Package Includes:

• 1 x A2212 1800KV Brushless Motor
