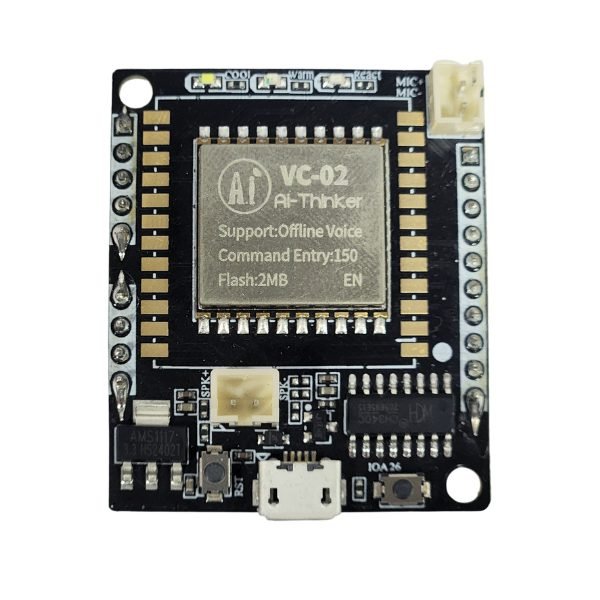

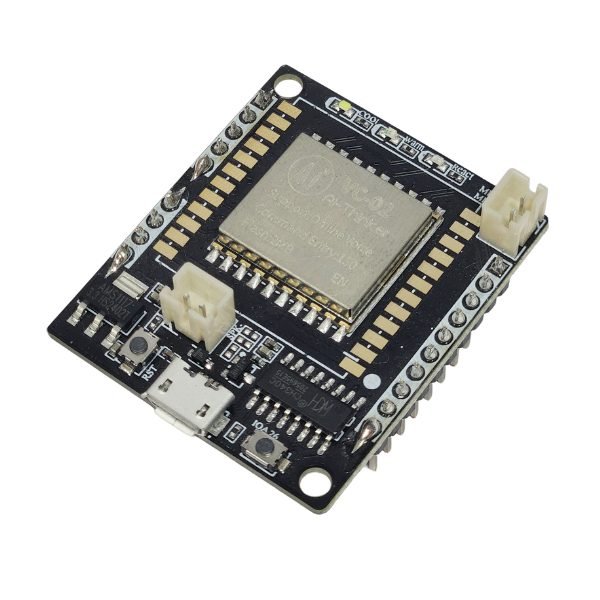

Ai-Thinker VC-02 Voice Recognition Control Module

The Ai-Thinker VC-02 Voice Recognition Control Module is an offline voice recognition module that processes spoken commands entirely on-chip without requiring any internet connection, cloud API, or external server. Built by Ai-Thinker, the vc02 voice module uses an onboard microphone for direct audio capture and outputs digital signals through UART, I2C, PWM, DAC, or GPIO interfaces. Operating between 3.3V and 5V with up to 500mA current, the ai thinker vc 02 connects directly to Arduino, STM32, ESP32, and Raspberry Pi boards through standard serial or GPIO connections.

The voice recognition control module stores multiple voice command definitions internally and responds to each recognized command with a configurable digital output — triggering a specific GPIO state, sending a UART byte, or producing a PWM signal that can directly drive relays, LEDs, buzzers, and motor controllers. Commands are configured using Ai-Thinker’s companion software tool and flashed once to the 2MB onboard flash, after which the module operates fully standalone without re-connection. One practical trade-off: the vc02 speech recognition kit performs best in low-noise environments. Background noise, overlapping speech, or strong accents reduce recognition accuracy. Place the module away from fans, motors, and speakers in the target enclosure for best results.

The offline voice recognition module over cloud-based voice AI platforms is latency — the VC-02 responds in under 100 milliseconds from voice command end to GPIO output, whereas cloud-based systems add 500 milliseconds to several seconds of network round-trip delay. This makes the VC-02 the correct choice for voice-controlled relay switches, smart appliance interfaces, and accessibility devices where real-time response matters. The offline voice recognition module is increasingly used in engineering college for  final year projects and embedded systems labs for voice-controlled robotics and smart home builds. Available from StemVolt, this unit is suitable for engineers working on embedded voice AI applications and practical smart electronics projects.

Related Product:

• Checkout the ESP32 CAM Board

Features:

• Offline voice processing works without internet cloud or external server

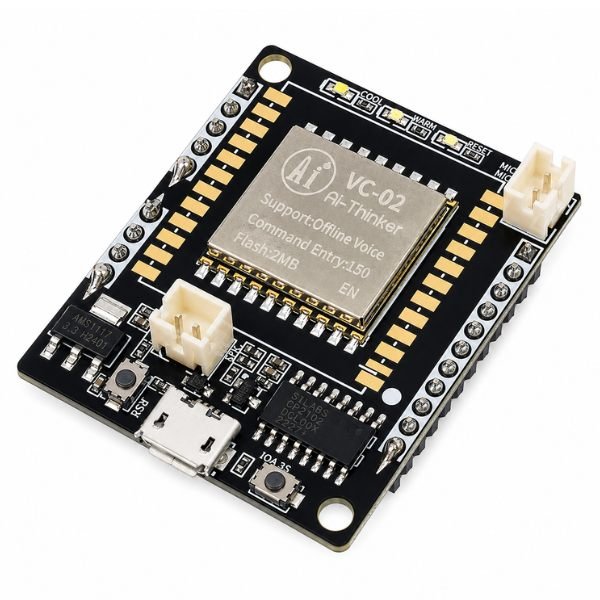

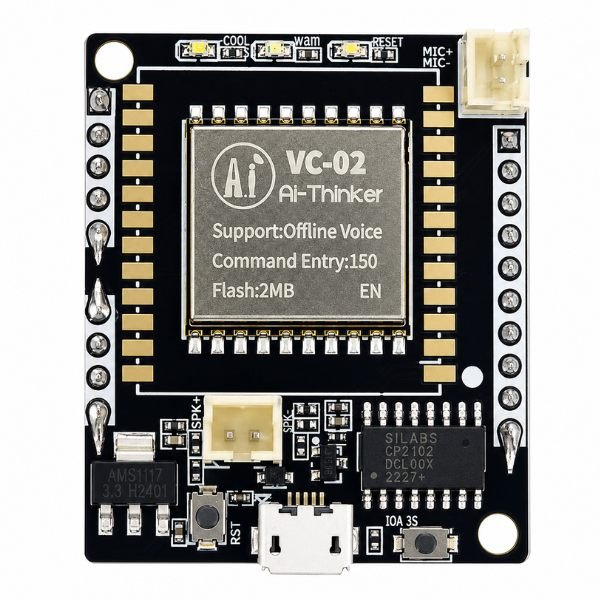

• Onboard microphone captures audio directly without external mic module needed
• UART I2C PWM DAC GPIO output covers all common MCU integration types
• 2MB flash stores multiple command definitions after one-time configuration flash
• 3.3V to 5V supply range works with Arduino ESP32 and Raspberry Pi

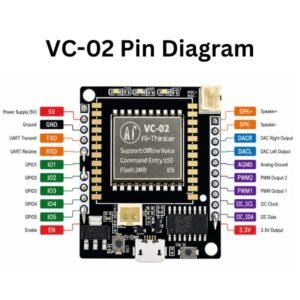

Pin Diagram of ai thinker VC-02:

Technical Specifications:

 Applications:

• Ai-Thinker VC-02 Module used for voice controlled relay smart home build
• College project uses offline voice recognition module for voice robot control
• Accessibility device uses vc02 voice module for hands-free appliance switching
• Smart light control uses voice recognition control module for GPIO led trigger

Package Includes:

• 1 × Ai-Thinker VC-02 Voice Recognition Control Module
