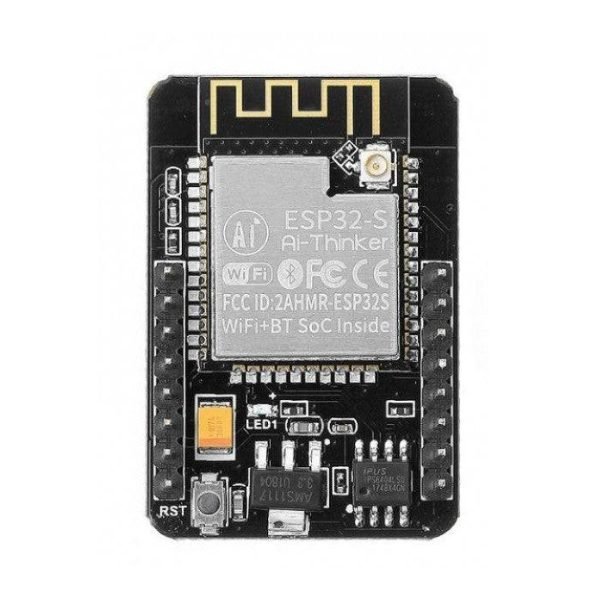

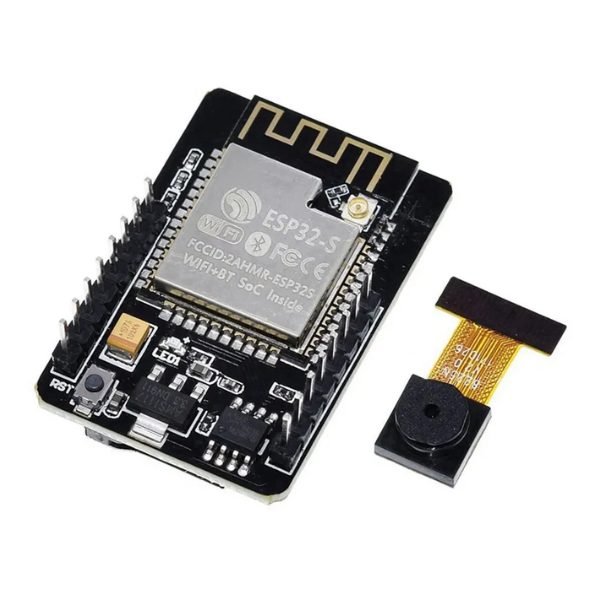

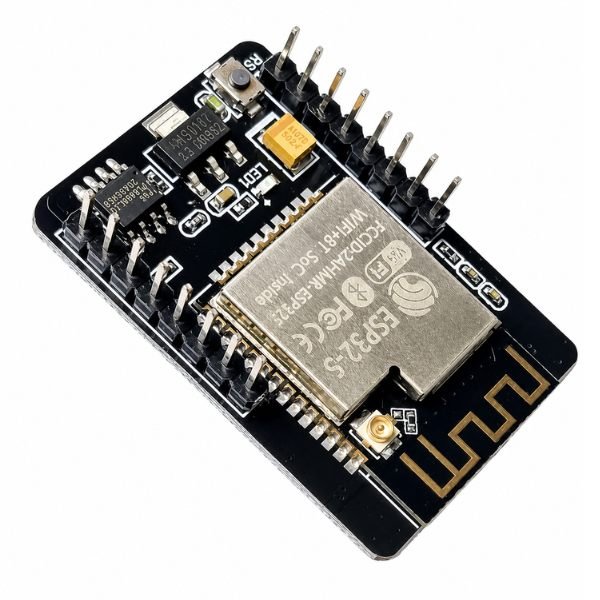

ESP32 CAM Board with OV2640 Camera Module combines a microcontroller board and image sensor in a compact layout. The esp32 camera captures JPEG frames internally, so no external image processor is required. It connects over WiFi as a wifi camera module, pushing frames directly to a web server or cloud endpoint. ESP32 runs a dual-core Tensilica LX6 processor up to 240 MHz, handling camera data and wireless tasks together.
The board exposes multiple GPIO pins alongside camera data lines, but pin availability drops once the camera is active. That trade-off matters when adding sensors. Power design runs at 3.3V logic, so direct 5V interfacing needs care. One non-obvious detail: PSRAM helps buffer image frames, reducing dropped frames during continuous streaming.
Programming uses Arduino IDE or ESP-IDF with serial upload via external USB-to-TTL. Developers working on esp32 camera module projects, automation, or monitoring systems use it regularly. At StemVolt, it’s often picked by microcontroller learners testing image-based projects and real-time data streaming.
Related Product:
-
Check out the ESP32 38 Pin WiFi Bluetooth Development Board
Features:
• Dual-Core Processor: LX6 cores run up to 240 MHz. Handles image capture and network stack together.
• OV2640 Camera Sensor: 2MP sensor outputs JPEG format. Reduces processing load on the microcontroller.
• WiFi Streaming: Built-in WiFi transmits frames directly. Useful for live monitoring without extra modules.
• GPIO Expansion: Limited GPIO available during camera use. Careful pin planning avoids conflicts.
Technical Specifications:
| Specification | Details |
|---|---|
| Processor | ESP32 Dual-Core LX6 |
| Clock Speed | Up to 240 MHz |
| Camera | OV2640 2MP |
| Connectivity | WiFi 2.4 GHz |
| Operating Voltage | 3.3V |
| Programming Interface | UART Serial |
Applications:
- Smart door camera — captures images and sends alerts over WiFi
- Surveillance node — streams video to local web server
- Face detection project — processes frames using onboard ESP32
- IoT security system — triggers alarms on motion detection
Package Includes:
- 1 × ESP32 CAM Board with OV2640 Camera Module
FAQ:
1. How to program ESP32 CAM Board with OV2640 Camera Module?
ESP32 CAM Board with OV2640 Camera Module uses UART programming. Connect a USB-to-TTL adapter, set GPIO0 to ground, and upload code via Arduino IDE using serial monitor for debugging.
2. Does ESP32 CAM Board support WiFi video streaming?
Yes, the esp32 camera supports WiFi streaming. It captures frames and serves them over HTTP, allowing real-time viewing in a browser without additional hardware modules.
3. Can I use ESP32 CAM without PSRAM?
ESP32 CAM works without PSRAM, but frame buffering becomes limited. For stable video streaming or higher resolution, PSRAM improves performance significantly during continuous image capture tasks.
4. What power supply is required for ESP32 CAM Board?
ESP32 CAM Board typically needs a stable 5V input through its regulator. Weak supply causes brownouts during WiFi transmission, especially when camera and radio operate simultaneously.
5. Is ESP32 CAM suitable for final year engineering students?
Yes, ESP32 CAM Board with OV2640 Camera Module is widely used by final year engineering students for IoT vision, surveillance, and automation projects involving wireless image processing.
