Anti-Vibration Shock Absorber Mount for APM, KK, MWC, and Pixhawk Flight Controllers

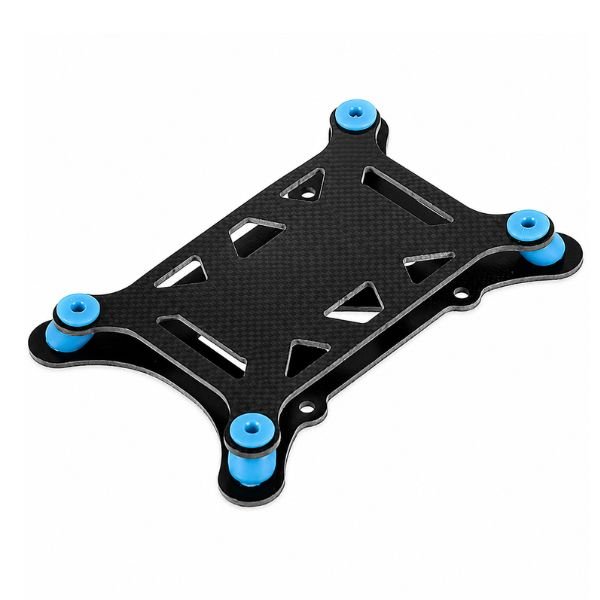

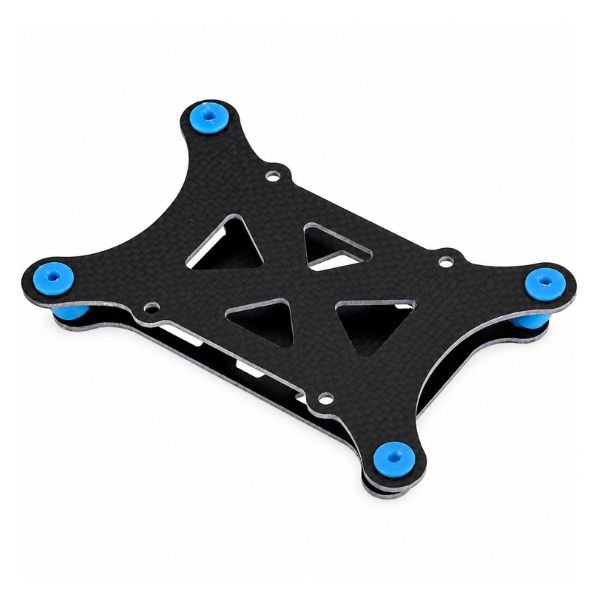

The Anti-Vibration Shock Absorber Mount for APM, KK, MWC, and Pixhawk Flight Controllers is a two-plate glass fiber mounting system connected by rubber shock absorber balls that physically isolates the flight controller from the vibrations generated by spinning propellers and brushless motors during flight. Flight controllers contain gyroscopes and accelerometers that measure the drone’s orientation and movement — when motor vibration travels through the rigid frame directly to the flight controller, the sensors pick up that vibration as movement, causing the flight controller to make unnecessary corrections and resulting in unstable, jittery flight. This anti vibration mount for flight controller places rubber shock absorbers between the frame and the FC board to absorb that vibration before it reaches the sensors.

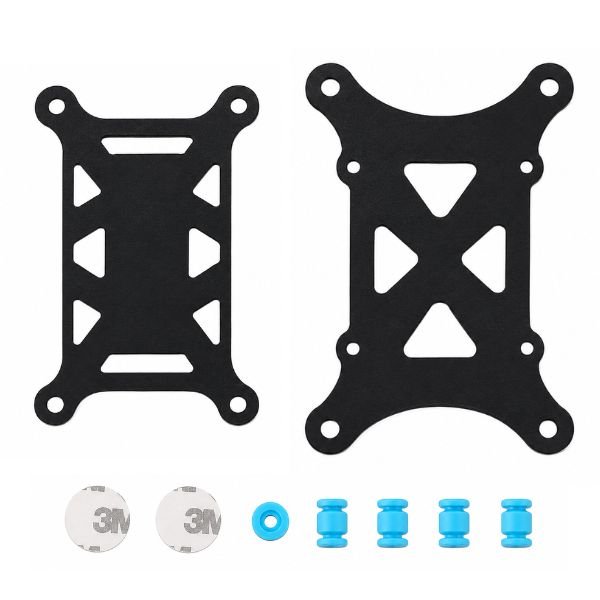

The apm flight controller mount comes with two glass fiber plate sizes — 90×60×2mm and 100×70×2mm — to accommodate different flight controller footprints across the APM, KK, MWC, and Pixhawk boards commonly used in Indian drone builds. Both plates are 2mm thin to keep the FC stack height low inside compact drone frames. The rubber shock absorber balls measure 10mm diameter and 12mm in height, connecting the two plates and providing the vibration damping layer between the rigid frame-mounted bottom plate and the FC-mounted top plate.

Available from StemVolt, offering quality electronics parts at competitive prices. This pixhawk vibration damper mount is ideal for APM KK MWC Pixhawk drone flight controller vibration isolation builds in India.

Related Products:

• Checkout 3D Printed Motor Mount

Features:

• Rubber shock absorber balls isolate FC from motor propeller vibration
• Two glass fiber plate sizes for APM KK MWC Pixhawk footprints
• 2mm thin plates keep FC stack height low in drone frame
• rubber balls provide effective high-frequency vibration damping
• Glass fiber lightweight rigid and non-conductive for FC mounting

Technical Specifications:

Applications:

• APM flight controller vibration isolation on FPV quadcopter frame build
• Drone project for anti vibration mount flight controller IMU protection
• Flight controller rubber damper mount on racing drone frame
• Shock absorber mount drone for flight controller vibration lab demo

Package Includes:

     1 x Anti-Vibration Shock Absorber Mount
