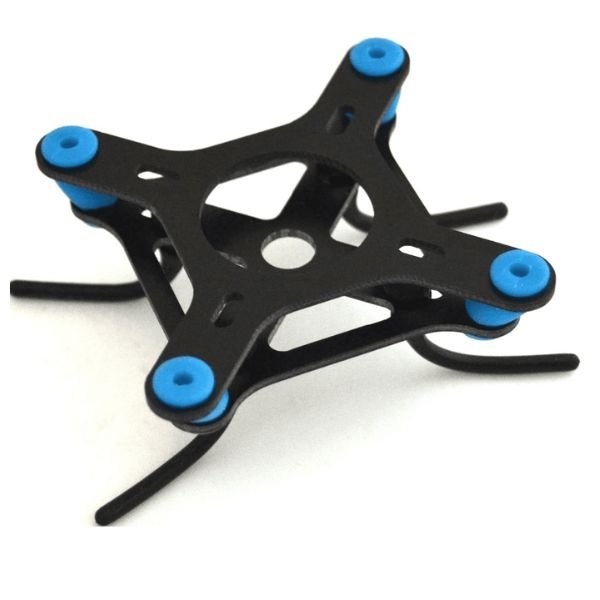

The CC3D Shock Absorber is a glass fiber vibration-damping mount platform designed specifically for smaller flight controllers used in mini quad builds — compatible with CC3D, Naze32, Mini APM, and Flip32 boards — where the compact FC footprint of these boards requires a smaller, correctly-sized anti-vibration platform rather than the larger mount used for full-size APM or Pixhawk controllers. Mini quad frames in the 180 to 250 class are stiffer and more rigid than larger drone frames, which means motor and propeller vibration transmits through the frame with less natural damping, making a dedicated vibration-isolating.

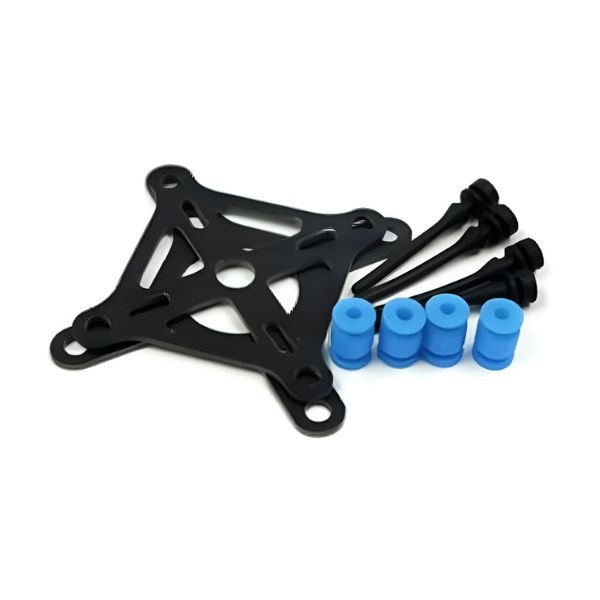

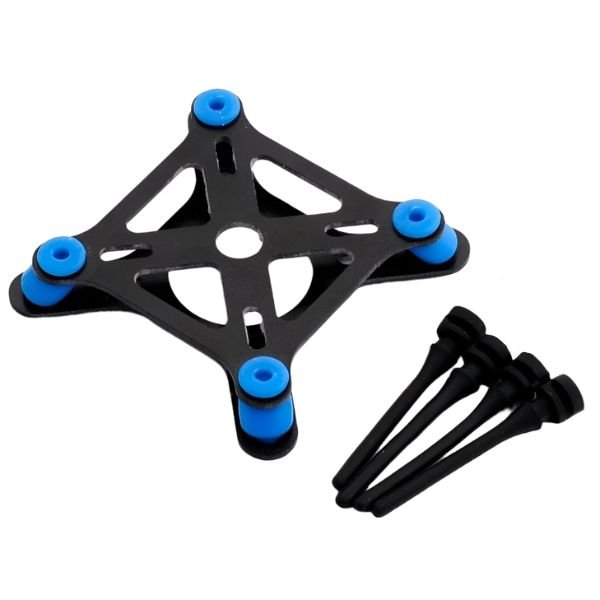

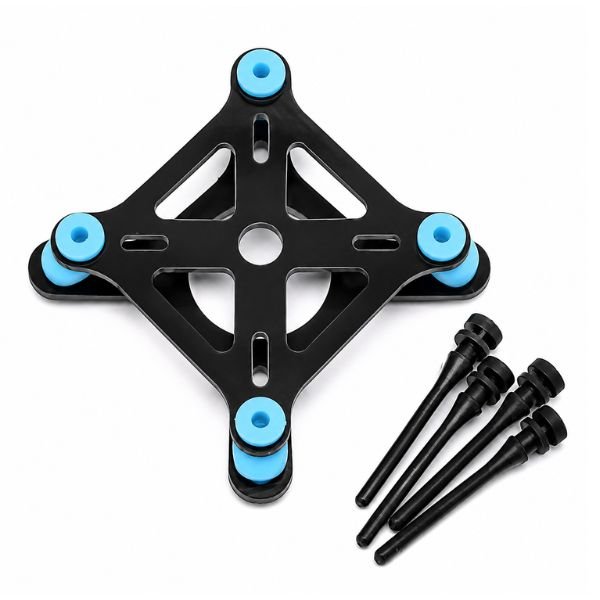

The cc3d shock absorber mount uses the same two-plate glass fiber and rubber shock absorber ball principle as larger FC mounts — the bottom plate bolts to the mini quad frame, the top plate carries the CC3D or Naze32 flight controller, and the rubber shock absorber balls between the plates absorb the high-frequency vibration from the motors before it reaches the gyroscope and accelerometer inside the FC. The glass fiber plates are lightweight and non-conductive, adding minimal weight to the already weight-sensitive mini quadcopter
The flip32 shock absorber mount’s compact form factor fits within the tight FC mounting areas of 180 to 250 class frames without protruding beyond the frame arms. This mini quad flight controller mount is ideal for CC3D Naze32 Flip32 Mini APM vibration isolation mini quad drone.
Related Products:
- Checkout XT60 Female Connector With Wire
Features:
- Sized for CC3D Naze32 Mini APM Flip32 mini quad FC footprint
- Rubber shock absorber balls isolate IMU from high-frequency motor vibration
- Glass fiber plates lightweight non-conductive for weight-sensitive mini builds
- Compatible with 180 to 250 class mini quad frame sizes

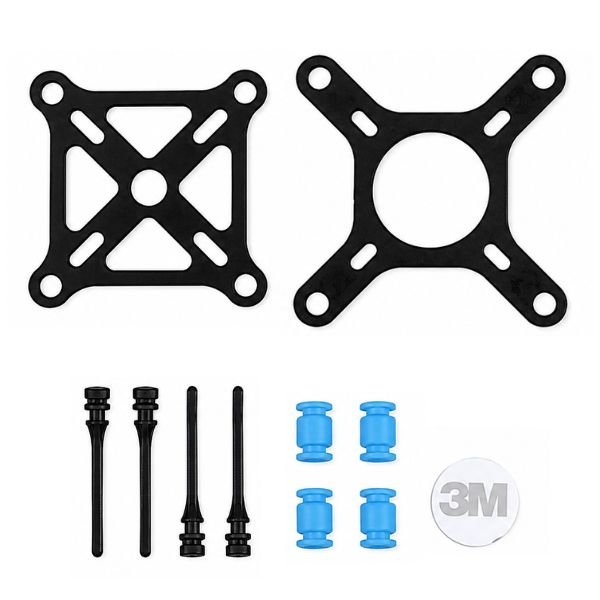

- Two-plate design — bottom to frame, top carries flight controller
Technical Specifications:
Applications:
- CC3D mini quad vibration isolation on 250 class racing drone frame
- drone project for naze32 vibration damper mini quad IMU protection
- Flip32 FC mount vibration damper on 180 class compact frame build
- cc3d anti vibration mount for mini quad FC stability lab
Package Includes:
- 1 x CC3D Shock Absorber
