High Voltage Servo Signal Reverser 3.6V – 24V for RC Servo

The High Voltage Servo Signal Reverser 3.6V–24V for RC Servo intercepts the PWM pulse signal traveling from a receiver to a servo and inverts the direction of travel — what was clockwise rotation becomes anticlockwise, and what was anticlockwise becomes clockwise. The High Voltage Servo Signal Reverser does this electronically in real time without modifying the transmitter programming, the receiver channel assignment, or the servo firmware. It fits inline between the receiver output and the servo input using JR male and female connectors that match the standard RC servo connector format used across most hobby-grade transmitters and receivers.

The rc servo signal reverser working voltage covers 3.6V to 24V, making it compatible with standard 5V analogue servos, 7.4V LiPo-powered digital servos, and high-voltage servo systems up to 24V used in large-scale RC models and industrial RC builds. Working current at 5A passes servo drive current through the module without becoming a bottleneck — most RC servos draw peak stall current well below 5A. One practical consideration – signal reversal applies continuously at all positions.

The travel of the servo reverses, not just the direction of a single movement. Engineers planning mixed-axis builds where only some servos need reversal must fit one reverser per servo channel requiring inversion rather than applying one module to the whole system. The high voltage servo signal reverser suits RC aircraft aileron reversal, robot joint direction correction, and camera gimbal axis inversion builds. This servo signal reverser module is working on RC servo systems and servo signal management. Available on StemVolt.

Related Product:

• Checkout Metal Gear Servo Motor 180°

Features:

• Real-time PWM inversion reverses servo direction without transmitter reprogramming
• 3.6V to 24V range covers analogue 5V and high-voltage 24V servo systems
• 5A current capacity passes high-torque servo drive current without restriction

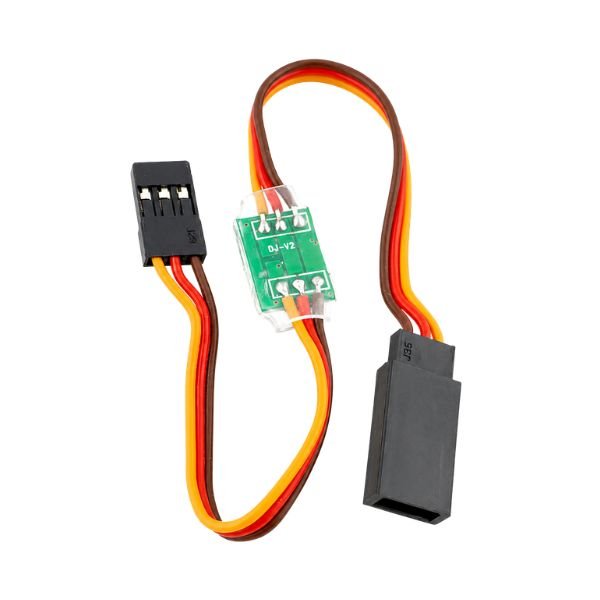

• JR male and female connectors fit standard RC receiver and servo chain directly

Technical Specifications:

Applications:

• High Voltage Servo Signal Reverser corrects aileron servo direction on RC fixed-wing aircraft
• RC servo signal reverser fixes reversed elevator travel on RC glider without transmitter changes
• High precision PCB ensures stable performance and excellent function.
• Servo signal reverser corrects robot joint rotation direction in multi-servo arm mechanism

Package Includes:

• 1 x High Voltage Servo Signal Reverser 3.6V–24V for RC Servo
