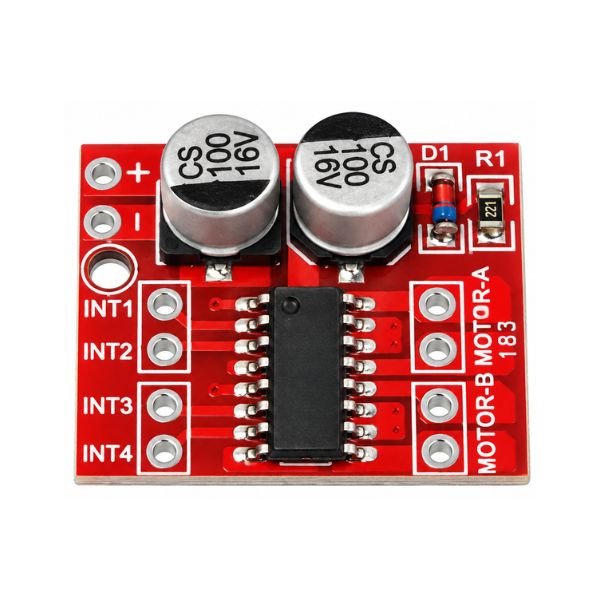

L298N Mini 2-Way Dual H-Bridge DC Motor Driver Module MX1508

The L298N Mini 2-Way Dual H-Bridge DC Motor Driver Module MX1508 designed for low-voltage, compact motor control applications where the standard L298N is too large or operates outside its efficient voltage range. The 2-Way Dual H-Bridge DC Motor Driver Module MX1508 operates from 2V to 10V motor supply — covering single Li-Ion cells at 3.7V, 2S LiPo packs at 7.4V, and standard AA battery builds without a boost converter. Two independent H-bridge channels each deliver 1.5A continuous current, with 2.5A peak rating absorbing the startup inrush that brushed DC motors draw when beginning rotation.

The L298N mini 2-way dual H-bridge DC motor driver label refers to the H-bridge circuit topology — two H-bridges sharing a module, the same architecture as the L298N but implemented in the smaller MX1508 IC suited to lower-voltage lighter-load applications. Logic input voltage accepts 1.8V to 7V, connecting directly to ESP32 3.3V GPIO, Arduino 5V GPIO, and STM32 3.3V outputs without any level shifting in between.

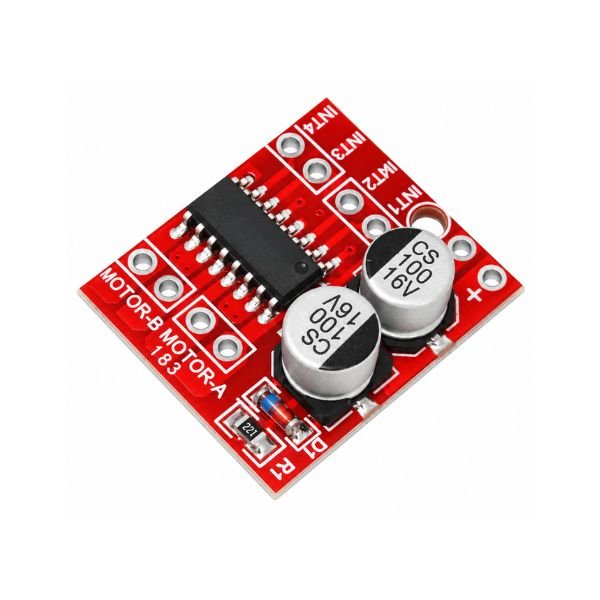

The 25 x 22 mm board footprint fits inside miniature robot chassis enclosures where larger motor driver boards physically cannot mount alongside the battery and controller.  The 2mm mounting hole fixes the board to chassis panels with an M2 screw for vibration-resistant installation. The L298N mini 2-way dual H-bridge DC motor driver suits two-motor micro robot builds, small conveyor mechanisms, and compact fan speed control builds. This module is working on low-voltage motor control and practical compact robotics project.

Related Product:

• Checkout L298 Dual DC Motor Driver Module

Features:

• MX1508 dual H-bridge delivers two-channel independent motor direction control
• 2.5A peak per channel handles brushed DC motor startup inrush current safely
• 1.8V to 7V logic input connects to 3.3V ESP32 and 5V Arduino GPIO directly
• 25 x 22 mm compact PCB mounts inside miniature robot chassis without space conflict

Technical Specifications:

Applications:

• L298N Mini 2-Way Dual H-Bridge DC Motor Driver Module drives two micro gear motors in miniature robot
• MX1508 motor driver controls two BO motors in compact two-wheel line-following robot
• DC motor driver module drives two small DC fans in temperature-controlled enclosure
• Controls forward and reverse motion in small motorised sliding door mechanism
• Motor driver price compact variant suits multi-unit classroom robot kit component

Package Includes:

• 1 x L298N Mini 2-Way Dual H-Bridge DC Motor Driver Module MX1508
