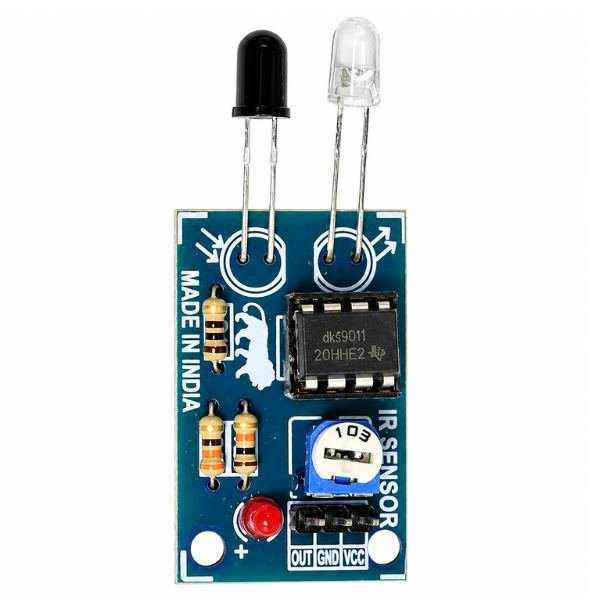

IR Infrared Line Tracking Sensor Module – Made in India

The IR Infrared Line Tracking Sensor Module detects the boundary between a dark line and a light surface using an IR (Infrared) emitter and photodetector pair built onto a small PCB. The IR Infrared Line Tracking Sensor runs on 3.3V to 5V DC and outputs a digital high or low signal depending on whether the surface below is reflective or absorptive. White surfaces reflect well and return HIGH. Dark surfaces absorb IR and pull the output LOW.

The ir line tracking sensor arduino uses IR reflectance sensing, where the photodetector reads how much infrared bounces back from the surface. One non-obvious detail — the detection works within a very short distance, typically a few millimetres from the sensor face. The limitation is ambient sunlight, which contains infrared and can overwhelm the receiver in outdoor conditions. The ir tracking sensor made in india connects to Arduino and ESP32 digital input pins. Students and hobbyists building line follower robots use it regularly. StemVolt provide this module tested with confirmed output on a black-on-white track surface.

Related Products:

• Checkout the IR Sensor Module

Features:

• Made in India — domestically manufactured for Indian STEM and lab builds
• Digital output directly compatible with all Arduino digital input pins
• 3.3V to 5V 20mA low power for battery-powered robot chassis
• Single-channel IR for line presence detection on black-white surfaces
• Standard 3-pin header fits Arduino robot shield sensor sockets directly

Technical Specifications:

 Applications:

• A line follower robot uses this sensor to stay on a track drawn on paper
• School project robots detect a black tape path on a white cardboard surface
• A simple sorting machine reads a black mark to count objects on a conveyor
• Arduino-based robotics projects read the digital output to make left and right turn

Package Includes:

• 1 x IR Infrared Line Tracking Sensor Module
