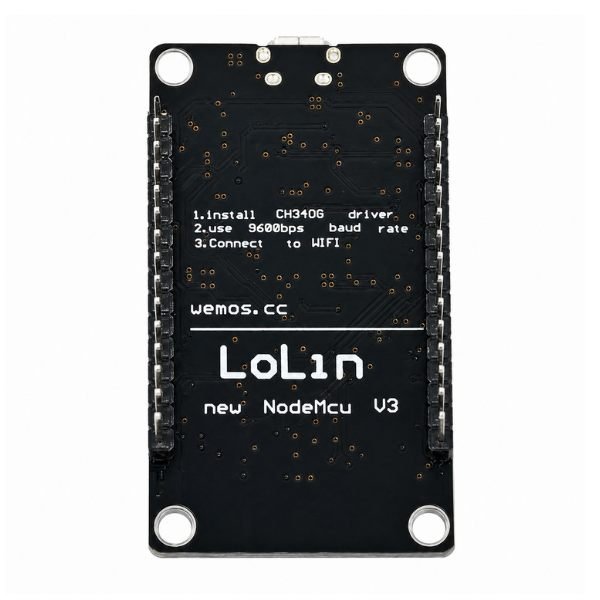

ESP8266 runs a 32-bit Tensilica core at 80 MHz and handles both WiFi networking and application code on one chip. The NodeMCU ESP8266 CH340 WiFi Development Board combines that MCU with USB programming and onboard flash, so you don’t need any external programmer. It behaves like a full microcontroller system, not just a WiFi module. You can push firmware directly and monitor output through the serial monitor while managing GPIO pins in real time.

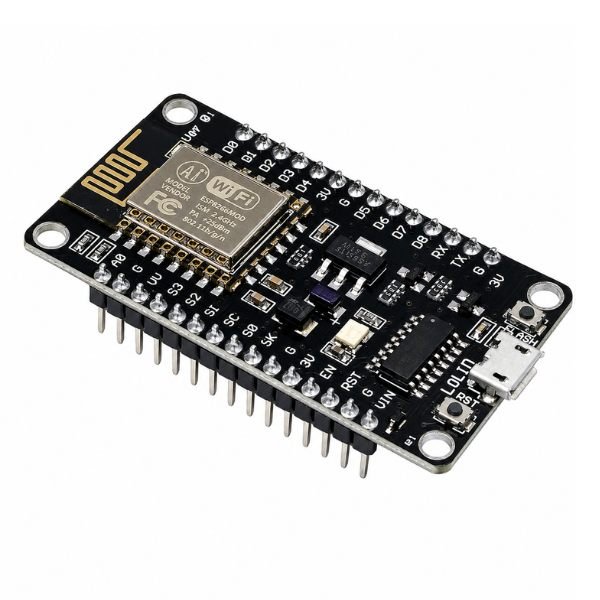

The board layout follows a breadboard-friendly design with clearly labeled pins and a stable voltage regulator. It exposes multiple GPIO pins along with UART, SPI, and I2C support. One detail many people miss: GPIO0, GPIO2, and GPIO15 decide boot mode. Wrong wiring here blocks flashing. Power comes through USB or VIN, but it runs strictly at 3.3V logic, so direct 5V signals can damage it. That’s the trade-off compared to some older boards.
Development works through Arduino IDE or Lua firmware. Upload speed stays consistent because of the CH340 interface, especially during repeated testing cycles. Makers, students, and embedded engineers use it for connected devices, quick prototypes, and firmware testing. StemVolt stocks this board for reliable project builds where WiFi integration is required from day one.
Related Product:
-
Check out the NodeMCU ESP8266 Serial Port Baseboard Board
Features:
• Integrated WiFi Stack: ESP8266 handles TCP/IP internally. You write logic without external network controllers.
• CH340 USB Interface: USB to UART chip manages flashing and debugging. Stable connection during repeated uploads.
• 4MB Flash Storage: Stores firmware and OTA updates. Useful for web server or data logging projects.
• GPIO Access: Multiple digital pins available. Connect sensors, relays, and displays directly.
Technical Specifications:
| Specification | Details |
|---|---|
| Microcontroller | ESP8266 |
| Clock Speed | 80 MHz |
| Flash Memory | 4MB |
| WiFi Standard | 802.11 b/g/n |
| USB Interface | CH340 |
| Operating Voltage | 3.3V |
| GPIO Pins | Multiple Digital I/O |
Applications:
- Home automation board — controls relays over WiFi using mobile dashboard
- WiFi weather station — reads sensors and uploads data to cloud server
- Smart switch — toggles appliances using HTTP or MQTT commands
- IoT data logger — stores sensor values and sends to web API
Package Includes:
- 1 × NodeMCU ESP8266 CH340 WiFi Development Board
