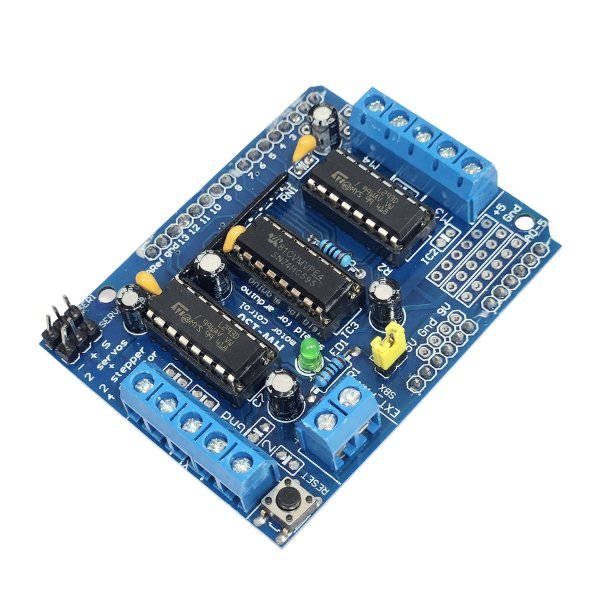

Arduino L293D Motor Driver Shield

The Arduino L293D Motor Driver Shield is a plug-on motor control shield for Arduino Uno and Mega 2560 built around the L293D dual H-bridge IC that controls two DC motors independently with PWM speed control and full forward-reverse direction switching from Arduino GPIO pins. The motor shield l293d accepts a motor supply voltage from 4.5V to 25V DC with 600mA continuous current per channel and a 1.2A peak rating — supporting standard hobby DC motors, gear motors, and small brushed motor types used in 2WD and 4WD robot chassis builds across a wide supply voltage range.

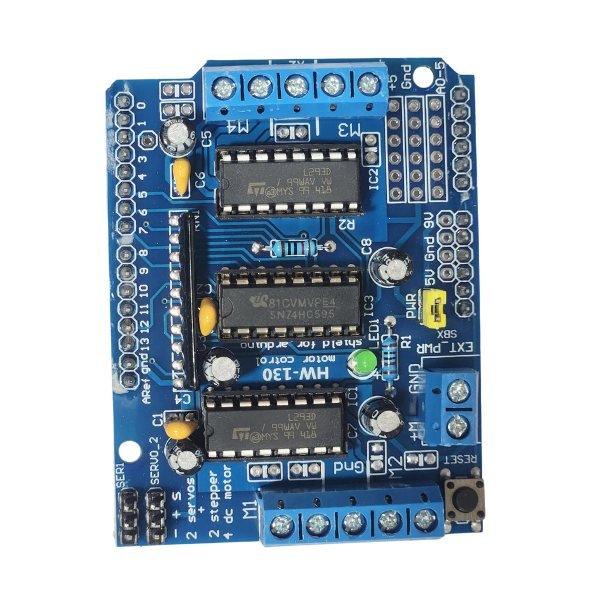

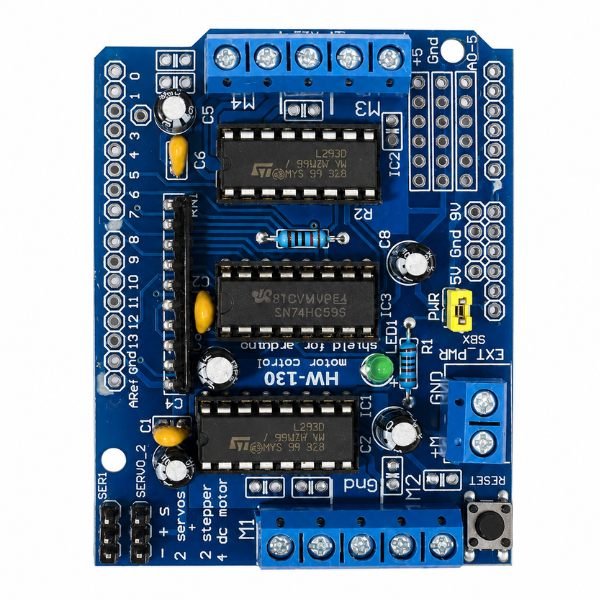

The hw 130 motor control shield model is a widely recognised form factor for this l293d motor driver configuration, providing a compact 6.5cm x 5cm x 1cm PCB that mounts directly on the Arduino shield headers. Motor supply voltage is connected through a separate terminal block on the shield — the motor power supply is electrically isolated from the Arduino 5V logic supply, which prevents motor current spikes from destabilising the Arduino during direction changes. One practical trade-off: the L293D IC has approximately a 2V drop across each H-bridge transistor pair, so a 6V motor rated supply will deliver approximately 4V to the motor terminals at full load — factor this into motor selection for torque-sensitive builds.

The non-obvious advantage of the motor control shield for arduino format over a standalone L293D module with jumper wires is board stability — the shield’s direct header contact eliminates loose wiring that causes intermittent motor behaviour during robot movement and vibration. Provided by StemVolt, this motor driver shield is well-suited for Arduino learners and microcontroller learners, who want a straightforward and reliable way to add motor control to their Arduino-based projects.

Related Keywords:

• Explore the motor driver and regulator for some creative build

• L293D dual H-bridge controls two DC motors independently with direction
• 4.5V to 25V motor supply range covers hobby and gear motor builds
• 600mA continuous 1.2A peak current handles standard DC motor loads
• Motor supply isolated from Arduino 5V to prevent current spike interference
• Compact 6.5x5cm shield plugs directly onto Arduino Uno Mega headers

Technical Specifications:

 Applications:

• Arduino L293D Motor Driver Shield used for 2WD robot chassis control
• College robotics lab uses motor shield l293d for bidirectional motor project
• Conveyor motor uses hw 130 motor control shield for PWM speed demo
• Arduino motor project uses l293d motor driver for direction switching build
• Line follower uses motor control shield for arduino for dual motor drive

Package Includes:

• 1 x Arduino L293D Motor Driver Shield
