SIMCOM 7670C 4G LTE GSM Module TTL

The SIMCOM 7670C 4G LTE GSM Module TTL is a multi-band cellular communication board that connects to 4G LTE (Long Term Evolution), 3G WCDMA, and 2G GSM networks using a standard SIM card. The simcom 7670c module communicates with a host microcontroller over UART (a two-wire serial data line) using AT commands (short text instructions that control the module functions). Data speeds reach up to 10 Mbps over the LTE Cat 1 standard, which is fast enough to stream sensor data, run MQTT (a lightweight IoT messaging protocol), and handle HTTP requests simultaneously. The SMA antenna connector accepts external antennas, letting you improve signal strength in weak coverage areas.

One technical detail the sim7670c datasheet clarifies — the 7670C uses the LTE Cat 1 standard, not the faster Cat 4 or Cat 6. Cat 1 tops out at 10 Mbps download, which is more than sufficient for IoT data payloads but will not suit applications that need continuous high-speed video streaming. The baud rate defaults to 115200 bps, which is faster than older 2G modules and handles larger AT command responses without buffer overflow issues. The honest trade-off is that this module requires a data-capable SIM plan with 4G LTE coverage. Voice calls and SMS work on the same module, but GPRS-only SIM cards will not activate the 4G features.

The sim a7670c 4g lte module with antenna board works with the Arduino IDE, PlatformIO, and any serial terminal that supports AT command testing over UART. Engineers building cellular IoT nodes, students learning 4G communication, and makers replacing older 2G modules all use it regularly. To start, insert an active 4G SIM card, power the board at 3.3V to 5V, and send AT over UART at 115200 bps to confirm the module registers. This module is well-suited for engineers building 4G LTE IoT systems and practical cellular embedded electronics projects.

Related Products:

• Checkout the SIM900A Wireless GSM GPRS Module with Antenna

Features:

• 4G LTE Cat 1 with 3G 2G fallback for maximum network coverage
• Up to 10 Mbps LTE data far exceeds 2G GPRS speeds
• 3.3V to 5V UART TTL connects directly to Arduino and ESP32

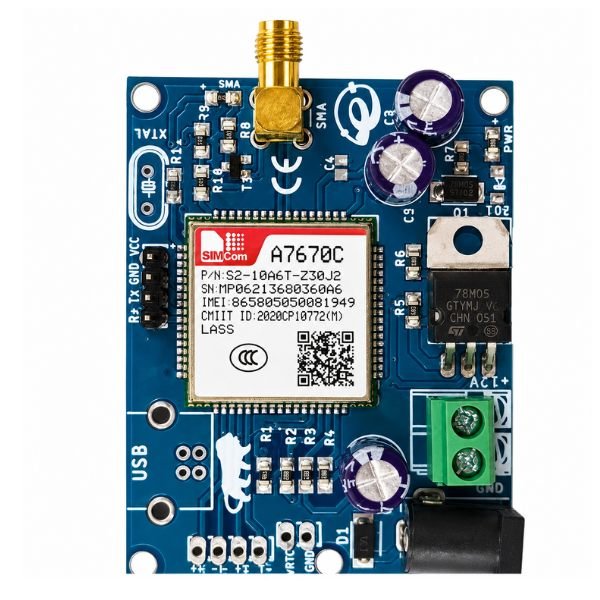

• SMA external antenna port accepts stub and magnetic mount LTE antennas
• AT command set compatible with SIM800 series for easy firmware migration

Technical specifications:

 Applications:

• SIMCOM 7670C Module used for 4G LTE GPS vehicle tracker build
• College project uses sim a7670c 4g lte module for LTE data demo
• Smart meter uses sim7670c datasheet-based AT command for GPRS TCP/IP report
• Alarm system uses sim a7670c 4g lte development board for fast alert
• Industrial node uses sim a7670c r2 4g lte gsm module for remote control

Package includes:

• 1 x SIMCOM 7670C 4G LTE GSM Module TTL
