4CH Remote Control Transmitter Receiver PCB Module

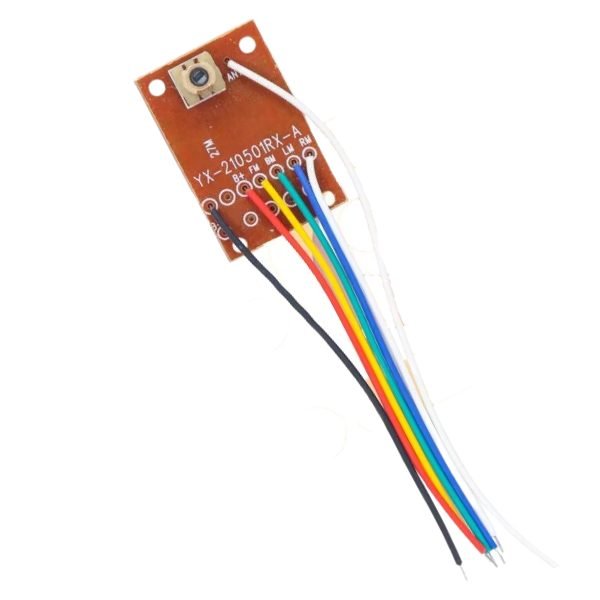

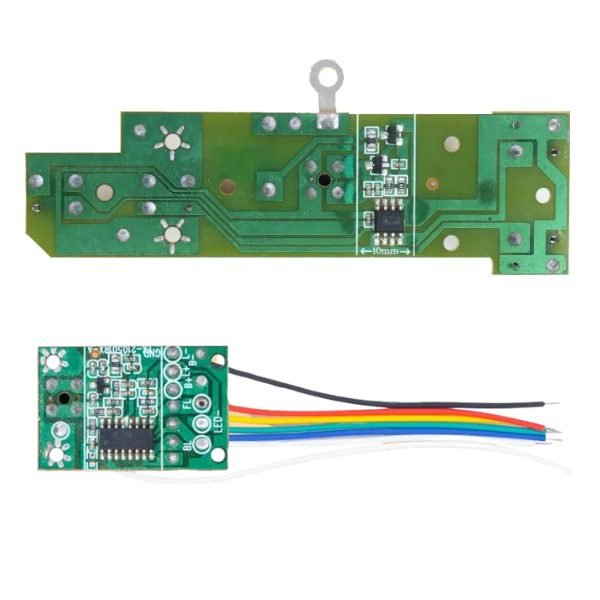

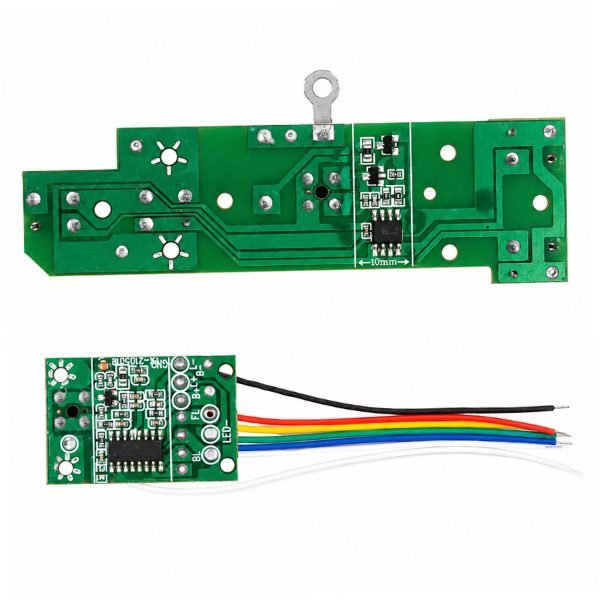

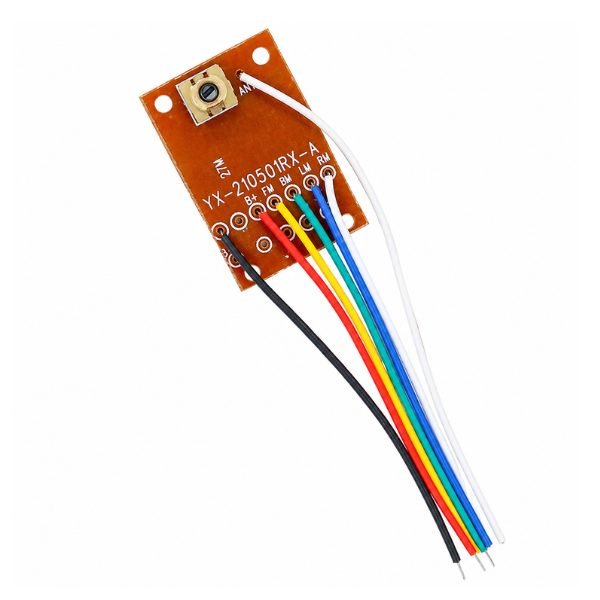

The 4CH Remote Control Transmitter Receiver is a 27MHz RF (Radio Frequency) wireless module set that gives your project four independent remote-controlled channels without any wires. The 4-Channel rc wireless module comes as a matched pair — one transmitter and one receiver PCB — that communicate only with each other at 27MHz. Each button press on the transmitter toggles one of the four output channels on the receiver, which you can wire to relays (electrically controlled switches) or directly to GPIO pins on a microcontroller.

One non-obvious detail about the 4 channel module is that 27MHz is an older, unlicensed ISM band (Industrial Scientific Medical band). It has longer wavelength than 433MHz modules, meaning it penetrates walls better at the same transmit power. The receiver operating voltage of 3.7V to 6V and the transmitter voltage of 3.7V to 9V are different ranges — so always use separate supply sources for each board.

The 4 channel rf remote control module works with Arduino, ESP32, and any microcontroller that reads digital HIGH or LOW signals on its GPIO pins. Students building wireless relay boards, remote-controlled vehicles and automating basic switching tasks. Connect the receiver outputs to your GPIO inputs, power each board separately, and press a transmitter button to test the corresponding output channel. StemVolt offers fast and reliable delivery of across India with trusted service support.

Related Products:

• Check out the IR Wireless Remote Control Module Kit

Features:

• 27MHz RF frequency carries four independent channel signals through walls at short range.
• Receiver operating voltage of 3.7V to 6V connects safely to 3.3V and 5V microcontroller boards.
• Transmitter accepts 3.7V to 9V DC allowing use with 9V batteries for untethered handheld operation.
• 4 ch rf transmitter and receiver level PCB construction keeps both boards compact and breadboard-friendly.

Technical specifications:

Applications:

• Remote toy car uses the four channels to control forward reverse left and right wirelessly.
• 4CH Remote Control Transmitter Receiver triggers four separate relay outputs in a workshop lighting setup remotely.
• Wireless relay control project reads four channel states over GPIO and activates motor drivers for a robot.

Package includes:

• 1 x 4CH Remote Control Transmitter Receiver
