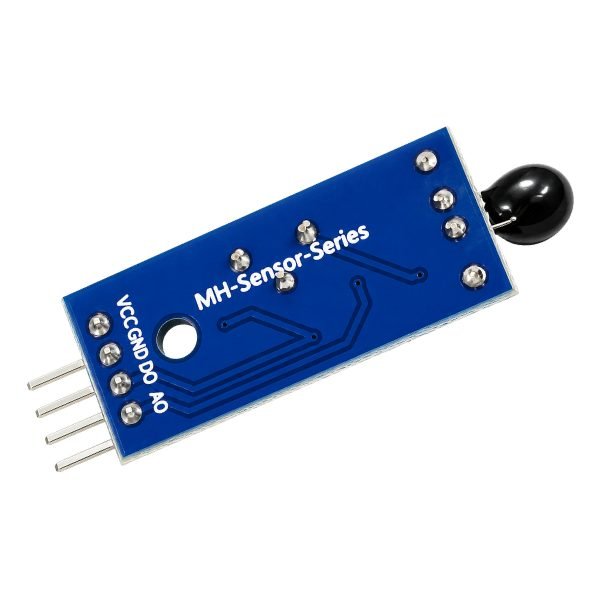

The 10K Thermistor Temperature Sensor Module uses an NTC thermistor (a resistor that changes its 10K ohm resistance with temperature) to measure temperatures from -25 to +80 degrees Celsius. The temperature sensor module runs on 3.3V to 5V DC and uses the LM393 comparator IC (a chip that compares two voltage levels) to output a clean digital HIGH or LOW signal when temperature crosses a set threshold.
The thermistor’s resistance decreases as temperature increases, not increases. One honest limitation of the 10k thermistor sensor is that the digital output only tells hot or cold relative to a threshold, not the exact temperature value use the analog pin for that.
Students use this with Arduino via the Arduino IDE. Connect VCC, GND, and the signal pin, then read with analogRead for precise values. StemVolt provides this sensor with trusted quality, ensuring reliable performance and easy usability.
Related Products:
- Checkout the HR202 Humidity Sensing Sensor Module
Features:
- NTC thermistor with 10K ohm resistance at 25°C allows precise temperature threshold detection on small boards
- 10k Temperature sense range of -25 to +80°C covers freezer monitoring through hot surface alert applications
- LM393 voltage comparator outputs a stable digital signal when temperature crosses the onboard potentiometer threshold
Technical Specifications:
| Specification | Details |
|---|---|
| Resistance Value | 10K ohm |
| Sensor Type | NTC Thermistor |
| Pin Configuration | 4 pin |
| Voltage Comparator | LM393 |
| Operating Voltage | 3.3 ~ 5 VDC |
| Temperature Sense Range | -25 ~ +80 °C |
Applications:
- Room temperature alarm uses this sensor to trigger a buzzer when heat exceeds a set level
- 10K Thermistor Temperature Sensor Module logs temperature data to a serial monitor for school science experiments
- An Arduino weather station reads the analog pin and calculates actual temperature using the thermistor resistance
Package Includes:
- 1 x 10K Thermistor Temperature Sensor Module
