12V 433MHz Wireless Magnetic Door and Window Sensor for Home Alarm

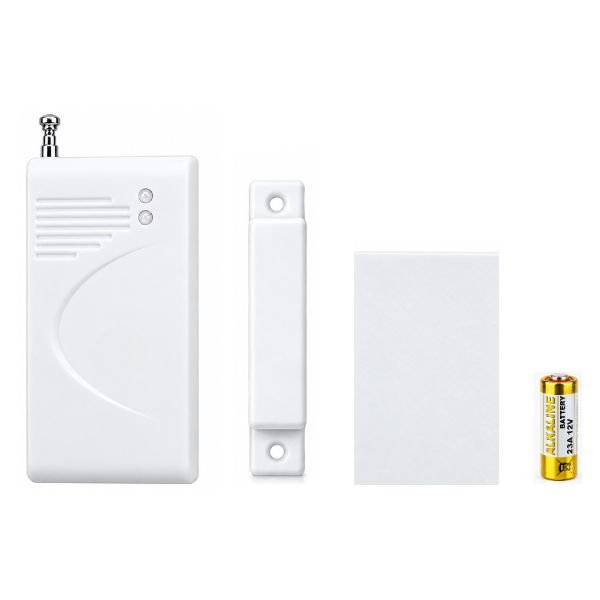

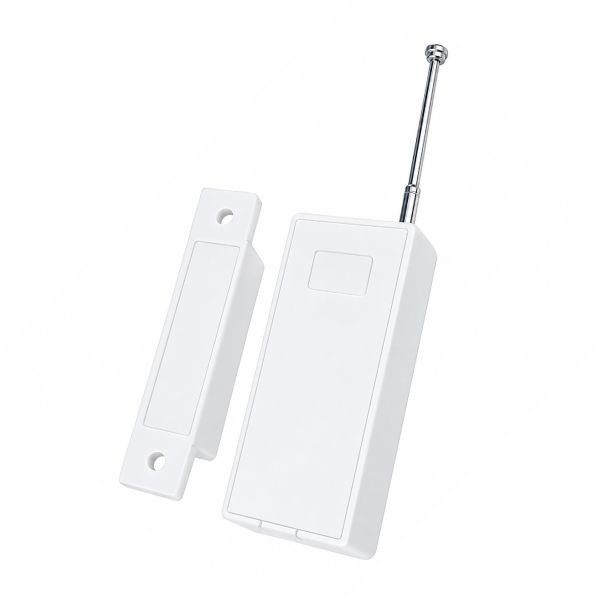

The 12V 433MHz Wireless Magnetic Door and Window Sensor for Home Alarm, consists of two parts – a transmitter body and a separate magnet block. The transmitter mounts on the door frame and the magnet mounts on the moving door or window leaf. When the door or window closes, the magnet sits adjacent to the transmitter body and the internal reed switch stays closed – no signal is transmitted. When the door or window opens, the magnet moves away, the reed switch opens, and the transmitter immediately sends a radio signal to the paired alarm receiver or security panel.

That wireless transmission eliminates the need to run signal wires from each door or window back to the alarm control panel, which is the primary installation advantage over wired contact sensors. The wireless magnetic door sensor operates on 12V DC supplied by a 12V 23A alkaline battery – the small cylindrical battery format common in remote controls and wireless alarm accessories. That battery-powered operation makes the sensor completely self-contained at the installation point with no mains wiring required at the door or window location.

The 433MHz 12V wireless magnetic sensor works with compatible alarm receiver, security panel, or RF relay module operating on the same frequency. The wireless security alarm sensor suits main entry door monitoring, window intrusion detection, and cabinet or drawer open alert systems. This wireless magnetic door and window sensor is available on StemVolt, and its working on wireless security and build RF-based entry monitoring.

Related Product:

• Checkout KY-025 Magnetic Reed Switch Sensor
• Explore Magnetic, Motion and Acceleration

Features:

• Reed switch mechanism detects magnet separation without mechanical contact wear
• 433MHz RF transmission pairs with compatible alarm panels and RF relay modules
• 23A 12V small alkaline battery powers transmitter without mains wiring
• LED indicator flashes on each open event for visual installation confirmation

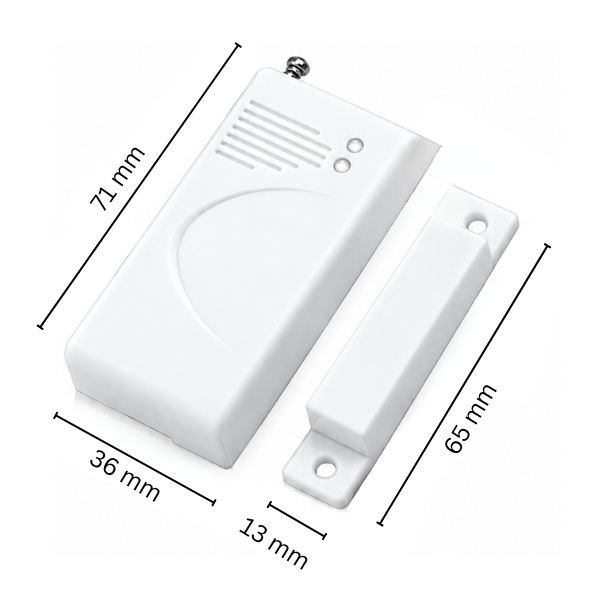

• Two-part: transmitter on frame, magnet on moving door or window leaf

Technical Specifications:

 Applications:

• 433MHz Wireless Magnetic Door Sensor triggers alarm panel on main entry door opening
• Wireless magnetic door sensor monitors rear door and side entry on commercial premises
• Sensor detects ground floor window opening in home security
• Magnetic window and door sensor sends open alert to 433MHz RF relay in smart home
• Anti theft door alarm sensor monitors storage room door in warehouse security system

Package Include:

• 1 x 12V 433MHz Wireless Magnetic Door and Window Sensor
