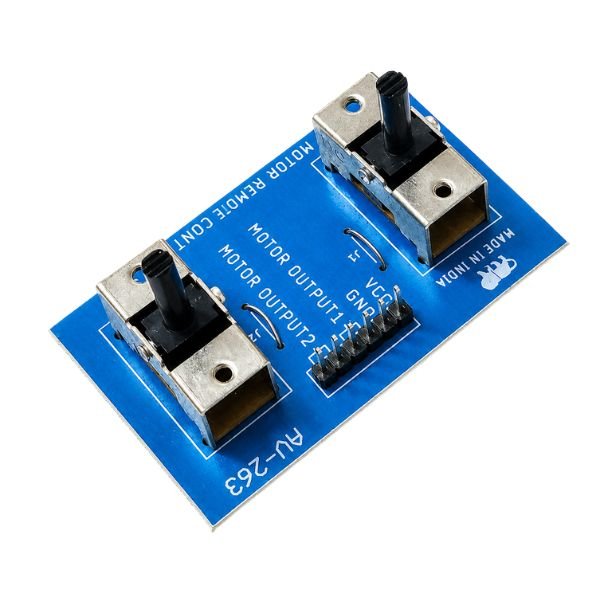

DPDT Joystick Remote Control Module for DC Motor

The DPDT Joystick Remote Control Module applies that switching principle to a joystick-style actuator with ON-OFF-ON momentary toggle action — push the joystick forward and the motor runs one direction, release it to centre and the motor stops, push backward and the motor reverses. A DPDT — Double Pole Double Throw — switch connects one input to two possible outputs while simultaneously switching a second input to two corresponding outputs. In a DC motor direction control circuit, that switching action reverses the polarity across the motor terminals, changing rotation from forward to reverse without any microcontroller or PWM driver involved.

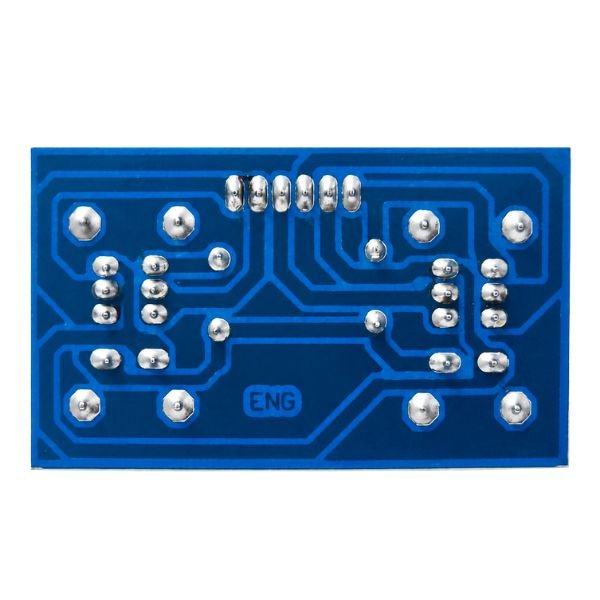

The rc joystick module controls two independent motor channels from one module body, making it suitable for two-motor robot chassis builds where left and right motors need separate directional control. Each channel handles up to 2A at 5V to 12V DC — adequate for small DC gear motors, BO motors, and hobby gearbox motors in lightweight robot builds. The dpdt joystick module 6-pin interface connects power supply and two motor outputs directly without additional driver circuitry between the module and the motors.

Motors with stall current above 2A will damage the internal switch contacts over repeated stall events, particularly in obstacle-encounter situations where motors stall momentarily against resistance. The dpdt rc joystick module suits manual robot control panels, crane and winch handheld controllers, and simple two-motor drive. This module working on manual motor control and practical DC project.

Related Product:

• Checkout Joystick Module

Features:

• DPDT toggle switch gives ON-OFF-ON control for two motor directions
• Controls 2 independent motor channels from one joystick module
• Rated 2A maximum per channel at 5V to 12V DC supply range

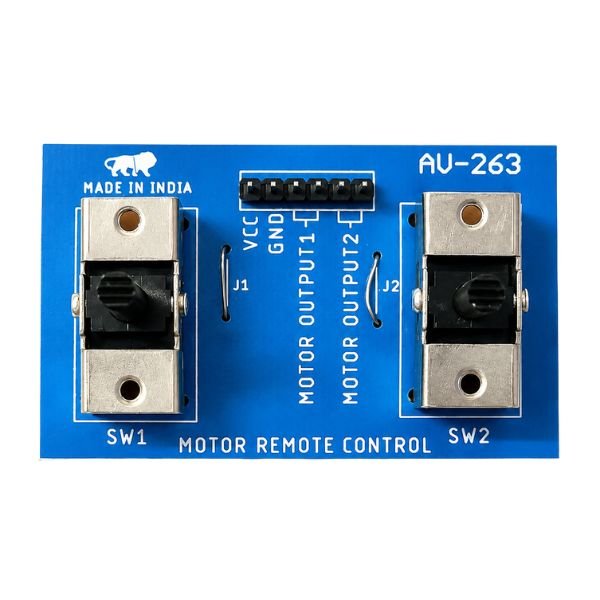

• 6-pin interface connects directly to motor and power supply terminals

Technical Specifications:

 Applications:

• DPDT Joystick Remote Control Module drives two-motor robot chassis left and right wheels manually
• Remote controller joystick module controls miniature crane hoist and traverse motor
• RC joystick module operates two-axis robotic arm base rotation and shoulder joint motor
• DPDT joystick toggle switch controls forward and reverse motion in conveyor belt model
• Joystick remote control module drives two-motor winch and spool mechanism

Package Include:

• 1 x DPDT Joystick Remote Control Module
