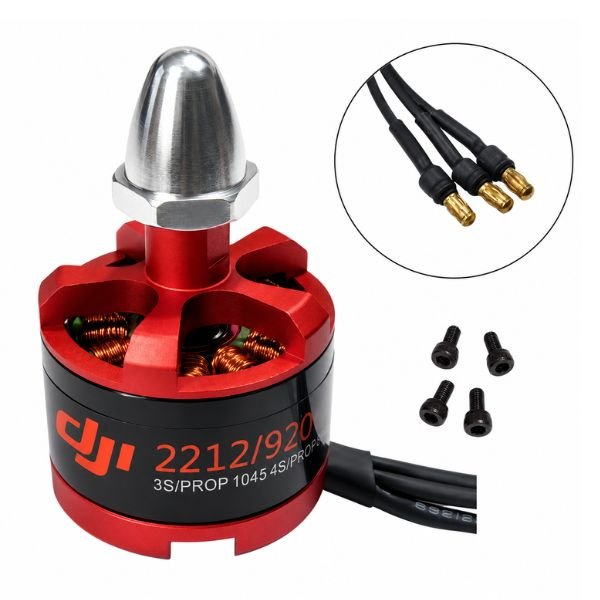

DJI 2212 920KV Brushless DC Motor for Drone (CCW Rotation, Silver Cap)

The DJI 2212 920KV Brushless DC Motor with Silver Cap is a counter-clockwise rotation brushless motor in the 2212 motor format — 22mm stator diameter, 12mm stator height — with a 920KV rating meaning the motor spins at approximately 920 RPM for every volt of supply, reaching around 10,200 RPM on a 3S LiPo at 11.1V for use with 9 to 10 inch propellers on F450 and similar 450mm class quadcopter frames.

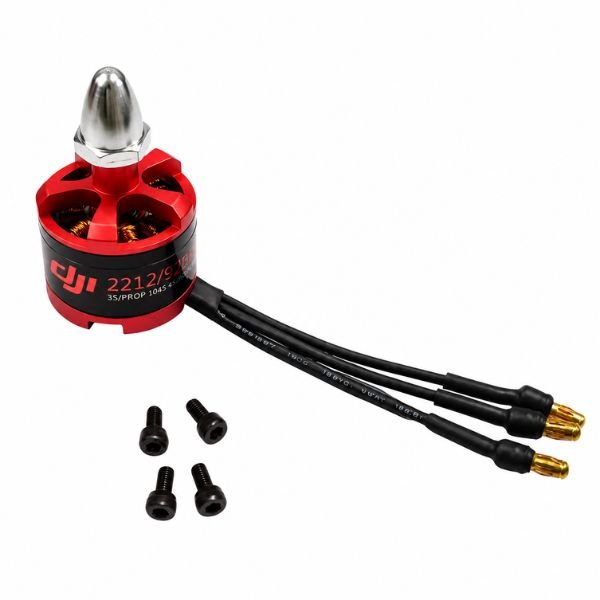

This dji motor delivers up to 500g of maximum thrust per motor, contributing to the total lift capacity of the F450 build across all four motor positions. The 2212 brushless motor comes with 3.5mm gold bullet connectors pre-soldered to the three motor phase wires — connecting directly to esc output wires.

This ccw drone motor is the counter-clockwise rotation variant — identified by the silver cap on the motor top — and is designed to occupy the counter-clockwise motor positions in a standard quadcopter layout, which on an F450 in standard X configuration are the front-right and rear-left positions. A complete F450 build requires two CCW motors (this variant) and two CW motors (clockwise rotation variant, typically with a different cap color), and installing both variants in the correct positions is essential for stable, balanced flight. This 920kv brushless motor drone is ideal for quadcopter and hexacopter drones. Available from StemVolt.

Related Product:

• Checkout A2212 2200KV Brushless Motor

Features:

• 920KV rating delivers ~10,200 RPM on 3S LiPo for 9-10 inch props
• 500g maximum thrust per motor for F450 class quadcopter lift
• CCW silver cap — counter-clockwise front-right rear-left motor positions
• Pre-soldered 3.5mm bullet connectors plug directly to 30A ESC outputs
• 2S-4S LiPo compatible — 7V to 12V rated input voltage range

Technical Specifications:

Applications:

• F450 quadcopter CCW motor position with 9-10 inch prop build
• Powers f450 frame with dji 2212 920kv ccw motor
• STEM drone project for 2212 brushless motor CCW quadcopter build demo
• F550 hexacopter frame using 2212 920KV silver cap motor
• 2212 motor 920kv brushless motor drone assembly lab build

Package Includes:

• 1 x DJI 2212 920KV Brushless DC Motor for Drone (CCW Rotation, Silver Cap)
