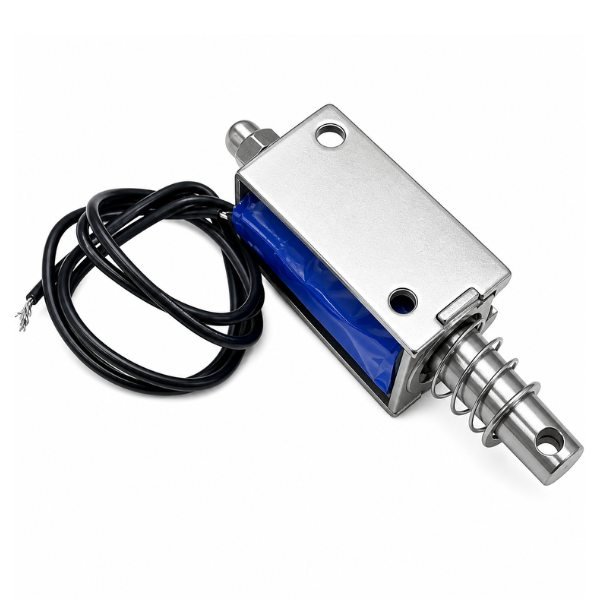

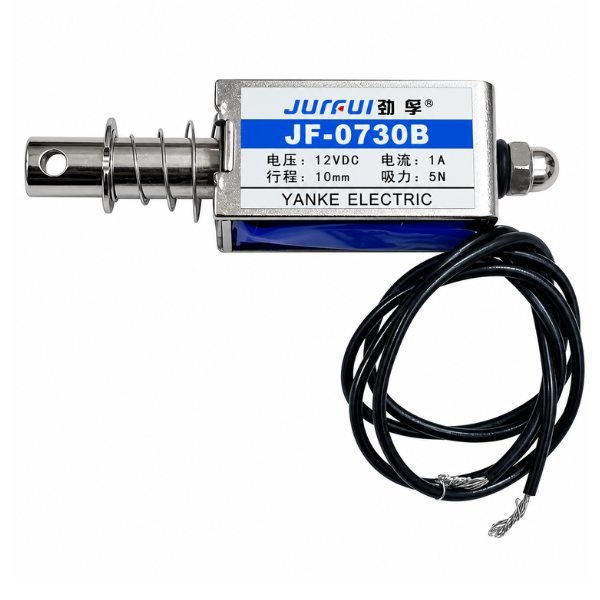

The JF-0730B DC 12V Push-Pull Linear Solenoid Electromagnet Actuator produces straight-line mechanical motion using an internal wound coil and ferromagnetic plunger. Apply 12V DC and the plunger pushes or pulls with 5N of force across a 10mm stroke. The linear solenoid 12v draws 1A at rated voltage and comes with a 15cm cable, so connecting it to a relay or MOSFET driver is straightforward from day one.
The jf0730b linear solenoid actuator operates on a short-duty-cycle basis, not continuous operation. Running it energised for more than a few seconds at a time causes the coil to heat and degrades insulation over repeated cycles. A non-obvious detail is that the rated 5N force applies at a specific plunger position near the start of travel. Force drops significantly as the plunger extends toward the full 10mm stroke because the air gap between plunger and core increases. Design electromagnetic actuator mechanical load to engage the plunger at mid-stroke rather than full extension for the most consistent force output.
Automation engineers, and makers use the electromagnetic actuator to control latches, dispensers, and valve mechanisms. Pair it with a MOSFET driver board or relay module triggered from Arduino. StemVolt provides sensor with trusted quality, ensuring reliable performance.
Related Product:
Features:
- Force of 5N at 10mm stroke handles light mechanical latch and valve actuation tasks
- Current draw of 1A allows switching from a single-channel relay module directly
- Linear solenoid actuator type moves plunger in a straight line without any linkages
Technical specifications:
| Specification | Details |
|---|---|
| Product Type | Linear solenoid actuator |
| Operating Voltage | 12V DC |
| Model | JF-0730B |
| Current | 1A |
| Stroke, Force | 10mm, 5N |
| Mounting Hole Diameter | 0.12mm |
| Cable Length | 15cm |
Applications:
- Coin dispenser mechanism uses 5N push-pull force to eject one coin per solenoid pulse
- Fluid solenoid valve control uses 12V electromagnetic actuation to open a small pipe valve
- Sorting gate on a conveyor uses the 10mm stroke to deflect lightweight parts between channels
- Automatic door lock uses 12V Push-Pull Linear Solenoid Electromagnet Actuator to release latch on relay trigger
Package includes:
- 1 x JF-0730B DC 12V Push-Pull Linear Solenoid Electromagnet Actuator
