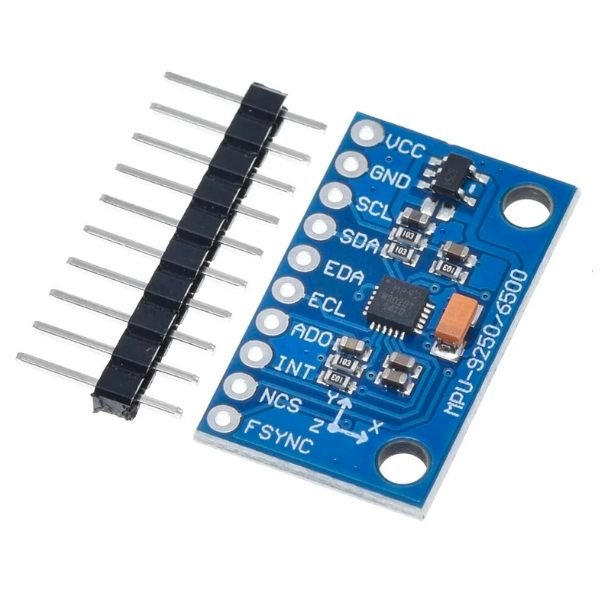

MPU-9250 9-Axis IMU Motion Sensor Module gyro Accelero Sensor

The MPU-9250 9-Axis IMU Motion Sensor Module is built around the MPU9250 sensor chip, supporting both I²C (up to 400kHz) and SPI (up to 1MHz) communication protocols, running at 3.3V logic level with ultra-low power consumption across a -40°C to +85°C operating temperature range, housed on a compact PCB with a standard 4-hole mounting pattern. The 9 axis imu sensor’s chip-level integration of gyroscope, accelerometer, and magnetometer onto a single die (rather than three separate ICs) keeps the module compact while reducing the complexity of inter-sensor wiring and synchronization that older multi-chip IMU designs required.

The mpu9250 sensor’s dual-protocol support matters practically — I²C requires only two signal wires (SDA, SCL) shared with other I²C devices on the same bus, simplifying wiring in projects already using I²C sensors, while the mpu9250 9 axis gyro accelerometer module’s SPI mode uses dedicated lines for each function and runs faster, better suited when reading at high sample rates for flight controllers or fast motion capture. The mpu9250 imu motion sensor’s 3.3V logic level is an important wiring consideration — connecting directly to 5V Arduino boards without a logic level shifter can damage the chip, so level-shifting or a 3.3V-native board like an ESP32 is recommended.

Mpu 9250 motion sensor’s standard 4-hole mounting pattern, while convenient for secure attachment to drone frames or robot chassis, adds a small footprint overhead compared to bare solder-pad-only IMU breakouts. Well-suited for learners and makers, this MPU-9250 module available at StemVolt enables IoT, navigation, and motion analysis projects using accurate inertial measurement and orientation sensing technology.

Related product:

• Checkout MPU-6050 Gyro And Accelerometer Sensor Module
• Explore Magnetic, Motion and Acceleration Sensors

Features:

• Single-chip integration of gyro, accelerometer, magnetometer reduces wiring complexity
• I²C for simple two-wire bus sharing, SPI for high-speed sampling
• 3.3V logic level — requires level shifting for direct 5V Arduino use
• -40°C to 85°C wide range suits outdoor robotics and drones
• Standard 4-hole mounting for secure frame and chassis attachment

Technical specifications:

 Applications:

• MPU-9250 used for ESP32 drone flight controller orientation sensing
• College project uses 9 axis imu sensor for I2C wiring demo
• Robot uses mpu9250 9 axis gyro accelerometer module for India chassis-mounted IMU
• High-speed build uses mpu9250 imu motion sensor for SPI fast sampling
• Wearable uses mpu 9250 motion sensor for compact frame-mounted tracking

Package includes:

• 1 x MPU-9250 9-Axis IMU Motion Sensor Module
