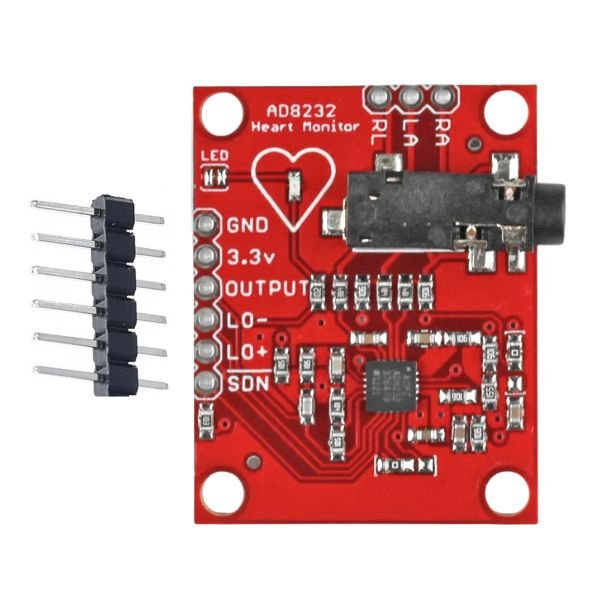

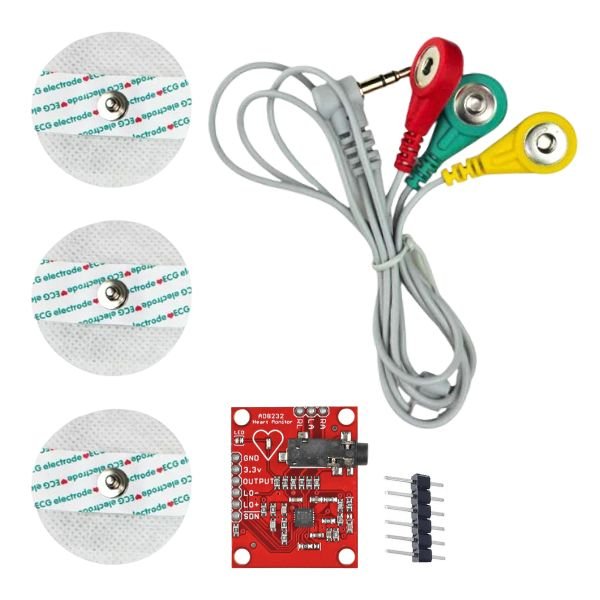

The AD8232 ECG Sensor Module captures ECG (Electrocardiogram — the electrical signal your heart produces with every beat) from electrode pads placed on the body. It amplifies and filters the tiny millivolt-level heart signal into a clean analog voltage readable by any microcontroller. The ad8232 ecg sensor module kit includes electrode cables and pads, so you can start testing immediately without buying accessories separately. It runs on 3.3V to 5V DC and outputs directly through a standard analog pin.
The ECG Heart Rate Monitor Kit uses the AD8232 chip, which contains an instrumentation amplifier (a high-precision differential amplifier that rejects noise from both electrodes equally) and a built-in right-leg drive circuit. One non-obvious detail — the right-leg drive actively cancels common-mode noise (interference that appears equally on both electrode leads) caused by power line 50Hz hum. The honest limitation is that this module gives a raw ECG waveform. Accurate clinical-grade interpretation requires additional signal processing and is not a substitute for medical equipment. The ad8232 ecg sensor module requires clean, dry skin contact at electrode sites — any movement of the body during capture introduces motion artefacts into the waveform.
The heart rate monitor sensor module connects to Arduino UNO and Raspberry Pi through the analog output and two digital SDN and LOD pins. Biomedical students build health project and researchers use it for academic ECG experiments. To start, attach three electrode pads to chest and ankle positions, connect the analog output to Arduino pin A0, and plot values in the Arduino Serial Plotter. StemVolt provide Heart Rate Monitor Kit for health projects.
Related Products:
Buy Light, Colours and Camera Sensors
Features:
- Analog output at 3.3V to 5V DC captures ECG waveform readable on any standard ADC input pin
- Right-leg drive circuit actively cancels 50Hz power line interference for cleaner ECG signal output
- SDN pin at 3.3V to 5V level puts the module into shutdown mode to save power between readings
- ad8232 ecg sensor datasheet confirms LOD plus and minus pins detect electrode lead-off for error handling
Technical specifications:
| Specification | Details |
|---|---|
| Model | AD8232 ECG Sensor Module |
| Item Type | Sensor |
| Operating Voltage | 3.3V – 5V |
| Interface | Analog pin |
Applications:
- ECG display project uses this sensor to show a heart waveform on a laptop serial plotter screen
- Biomedical lab experiment uses this to record ECG signals for analysis in an engineering course report
- AD8232 ECG Sensor Module reads continuous heart signal and sends data to a Raspberry Pi for processing
- ad8232 ecg sensor module kit reads analog ECG output and feeds it into an FFT algorithm for frequency analysis
Package includes:
- 1 x AD8232 ECG Sensor Module
