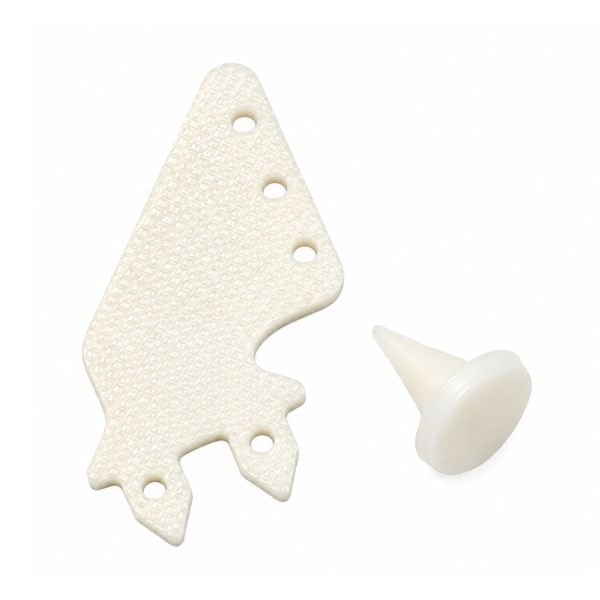

Control Horn Set for RC Plane (Pack of 5)

The Control Horn Set for RC Plane is a small high-density nylon bracket that mounts directly onto the control surface of a fixed-wing RC aircraft — the rudder, elevator, or aileron — and provides the attachment point where the pushrod from the servo connects to move that surface during flight. When the servo rotates, it pulls or pushes the pushrod, which pulls or pushes the control horn, which deflects the control surface up, down, left, or right to steer the aircraft. This control horn for servo is the mechanical link between the servo’s rotary motion and the control surface’s linear deflection.

The control horns for rc plane in this set have four vertical adjustment holes with 1.5mm diameter — each hole is at a different distance from the base mounting point, which allows the builder to tune the control surface throw without changing any servo settings or transmitter programming. Connecting the pushrod to the outer hole moves the control surface further for each degree of servo rotation, giving more aggressive response suited to aerobatic flying, while connecting to the inner hole gives a smaller, gentler movement per servo degree for smoother trainer aircraft control. The rc plane control horn set’s high-density nylon construction keeps weight low on the control surface while providing enough strength to handle the pushrod forces during high-speed manoeuvres.

Available from StemVolt, offering quality electronics parts at competitive prices. This rc control horn nylon set is ideal for fixed-wing RC plane rudder elevator and aileron servo pushrod builds in India.

Related Products:

• Checkout 3.17MM Prop Saver with Band

Features:

• 4 vertical holes for outer aggressive or inner gentle throw tuning
• High-density nylon keeps weight low on control surface during flight
• 1.5mm hole diameter fits standard RC pushrod wire and clips
• Mounts on rudder elevator or aileron of any fixed-wing RC plane
• Compatible with standard RC servos and pushrod linkage systems

Technical Specifications:

Applications:

• Rudder control surface linkage on foam fixed-wing RC trainer plane
• India maker installs control horn set on scratch-built RC aircraft aileron
• STEM project for control horn pushrod servo linkage flight demo build
• Elevator servo pushrod connection on RC glider control surface repair
• College rc control horn nylon for servo pushrod mechanics flight lab

Package Includes:

      1 × 3D Printed Control Horn Set for RC Plane (Pack of 5)
