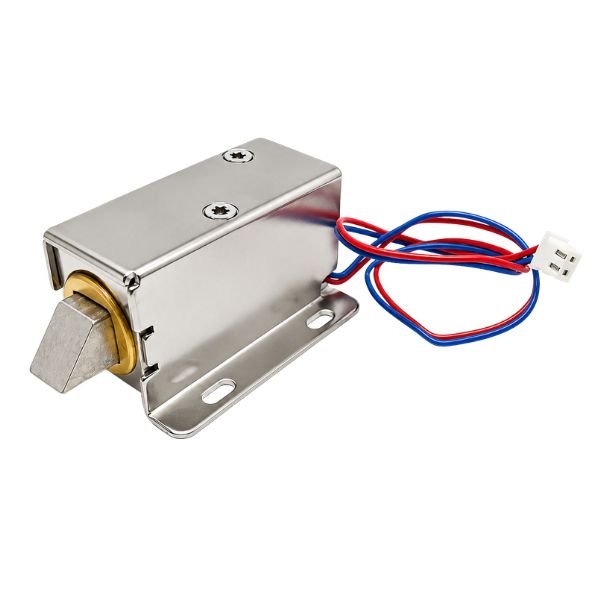

The DC 12V Door Cabinet Lock Electric Lock Assembly Solenoid releases its spring-loaded plunger when 12V DC is applied, unlocking the door or cabinet within 1 second. Remove power and the plunger retracts to lock automatically without any mechanical key. The 12v electronic door lock draws 0.8A at 9.6W power consumption and delivers 2.45N of holding force, which keeps lightweight cabinet doors closed firmly against accidental contact.
The electromagnetic solenoid lock is rated for intermittent operation only. Running it energised for more than a few seconds at a time at 9.6W heats the iron metal coil housing and degrades winding insulation over repeated cycles. A solenoid electric lock detail is that the 2.45N holding force is measured when the plunger is fully retracted at the locked position. As the plunger starts to extend toward unlocked, the electromagnetic force drops sharply because the air gap between the plunger and the core increases cabinet door lock.
This means the door must be pulled open within the 1 second unlock window while the plunger is still partially retracted for the full 2.45N release to function correctly. Also add a flyback diode across the coil wires to protect relay contacts from back-EMF on power-off events.
Automation engineers, security project builders and makers use the dc 12v cabinet lock alongside relay modules or MOSFET drivers triggered from Arduino GPIO. StemVolt provide lock with a 25cm pre-attached cable and iron metal body ready to install in cabinet frames.
Related Products:
- Also explore: Magnetic, Motion and Acceleration Sensors
Features:
- Holding force of 2.45N keeps lightweight cabinet and drawer doors securely closed
- Power consumption of 9.6W suits a standard 12V 1A wall adapter power supply
- Unlocking time of 1 second gives a clean audible release click on trigger signal
- Iron metal body construction keeps the lock body rigid during repeated actuation cycles
Technical specifications:
| Specification | Details |
|---|---|
| Electromagnet Force (Kg) | 0.25 |
| Voltage Rating (V) | 12VDC |
| Current Rating (A) | 0.8 |
| Model Name | DC 12V Cabinet Door Lock |
| Lock Type | Electric solenoid lock |
| Operating Voltage (VDC) | 12 |
| Rated Current (mA) | 0.80A |
| Power Consumption (W) | 9.6 |
| Holding Force (N) | 2.45 |
| Unlocking Time (s) | 1 sec |
| Body Material | Iron Metal |
| Energized Forms | Intermittent |
| Cable Length (cm) | 20cm |
Applications:
- Smart cabinet project uses DC 12V Door Cabinet Lock Electric Lock Assembly Solenoid to restrict access via keypad code
- Office drawer security uses electromagnetic solenoid lock to block unauthorised opening during office hours
- Automated access control panel uses relay trigger to release solenoid electric lock on RFID scan
- Vending machine door uses 12V relay-triggered lock to release front panel after payment confirmation
Package includes:
- 1 x DC 12V Door Cabinet Lock Electric Lock Assembly Solenoid
Reviews
Clear filtersThere are no reviews yet.
