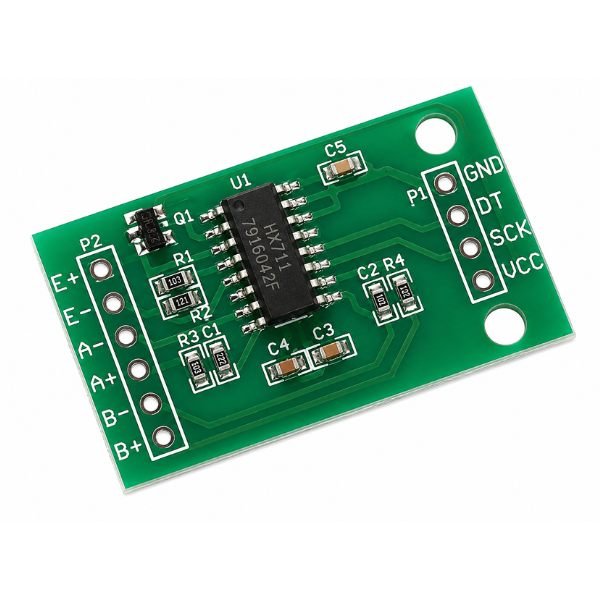

The HX711 Dual Channel 24-Bit Load Cell Weight Sensor Module is a precision analog-to-digital converter breakout built around the HX711 chip, designed to amplify and digitise the tiny millivolt-level differential signal produced by a load cell’s Wheatstone bridge into a 24-bit digital value readable over a simple two-wire SCK/DOUT interface. The hx711 amplifier operates from 5V to 10V DC at under 1.5mA normal operating current, and the dual channel design allows connection of two load cells or selectable gain configurations for different weight ranges on a single board.
The hx711 load cell amplifier 24-bit ADC resolution provides extremely fine measurement granularity — a typical 5kg load cell connected to this hx711 module can resolve weight changes well below 1 gram, making the hx711 weight sensor suitable for precision kitchen scales, laboratory balances, and industrial weighing applications. The load cell module differential analog input connects to the four wires of a standard load cell (Red/E+, Black/E-, White/A-, Green/A+), and the HX711_ADC or Arduino-LoadCell library handles raw value reading, tare zeroing, and calibration factor application for converting raw ADC counts to grams or kilograms.
HX711 module requires a one-time calibration process — placing a known reference weight on the load cell and recording the raw ADC reading establishes the calibration factor; without this calibration step, the raw 24-bit values have no defined relationship to actual weight units. Available from StemVolt, this HX711 dual-channel 24-bit load cell sensor module is ideal for engineers and enthusiasts developing weighing scales, force measurement, and precision weight sensing projects with high-resolution data acquisition.
Related Product:
- Checkout the 50Kg Load Cell sensor
Features:
- 24-bit ADC resolves sub-gram weight changes for precision scales
- Dual channel supports two load cells or selectable gain settings
- 5V to 10V supply at under 1.5mA suits battery-powered scales
- Simple SCK/DOUT two-wire interface for Arduino digital pin connection
- Compatible with standard 4-wire load cells via Arduino-LoadCell library

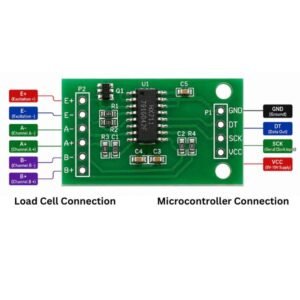

Pin Diagram of HX711 Sensor:
Technical specifications:
 Applications:
- HX711 Module used for Arduino digital kitchen weighing scale build
- College project uses hx711 amplifier for load cell weight display demo
- IoT scale uses hx711 load cell amplifier for remote weight monitoring
- Industrial bin uses hx711 weight sensor for material level by weight
- Lab balance uses load cell module for precision sample weighing build
Package includes:
- 1 x Load Cell Weight Sensor Module
