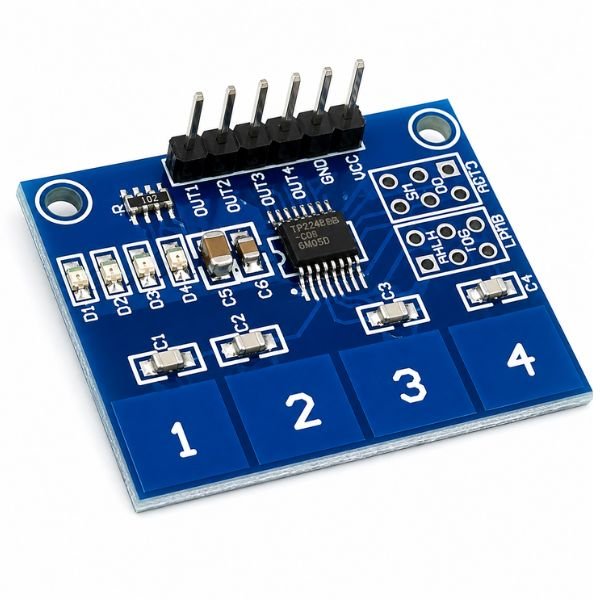

The TTP224 4 Channel Capacitive Touch Sensor Module provides 4 independent capacitive touch inputs on a 35mm x 30mm PCB, operating from 2V to 5.5V, with a 0.5 second calibration delay at startup, built around the TTP224 Touch Switch chip. This ttp224 4 channel touch sensor’s 35mm x 30mm board footprint is a practical installation detail — it gives builders a predictable panel cutout or enclosure mounting dimension to plan around when integrating touch pads into a finished project enclosure.
The TTP224 module’s two selectable response modes offer a meaningful design choice: the 160ms low-power mode draws less current and suits battery-powered builds where power budget matters more than speed, while the 60ms fast mode suits mains-powered applications where snappier touch response improves user experience. Per the ttp224 touch sensor datasheet, the 0.5 second calibration window at power-up is when the chip measures and stores the baseline no-touch capacitance for each of its four channels individually.
this 4 channel ttp224 sensor’s fixed 35mm x 30mm board size and 4-pad layout means it works best when all four touch points are needed — projects only requiring one or two touch inputs might find the single-channel TTP223B a more compact fit. Available from StemVolt, well-suited for engineers and makers building panel-mounted touch interfaces and practical multi-button capacitive control electronics projects.
Related Products:
- Checkout Touch Detection Sensor Module
- Explore Touch, Sound and Vibration Sensors
Features:
- 35mm x 30mm footprint gives predictable panel cutout dimensions
- Selectable 160ms low-power or 60ms fast-mode response per design need
- 4 independent touch pads with per-channel startup calibration
- 0.5 second calibration delay establishes accurate no-touch baseline
- 2V to 5.5V compatible with Arduino and battery-powered designs

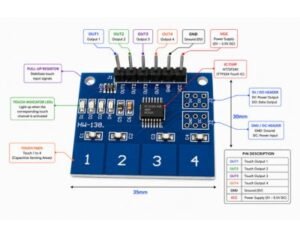

Pin diagram of TTP224 Touch Module:
Technical specifications:
 Applications:
- TTP224 used for Arduino panel-mounted 4-button touch build
- College project uses ttp224 4 channel touch sensor for power-mode demo
- Battery device uses TTP224 module for India low-power touch interface
- Enclosure panel uses ttp224 4 channel sensor for flush touch controls
- Home appliance uses 4 channel capacitive touch sensor for button-free panel
Package includes:
- 1 x TTP224 4 Channel Capacitive Touch Sensor Module
