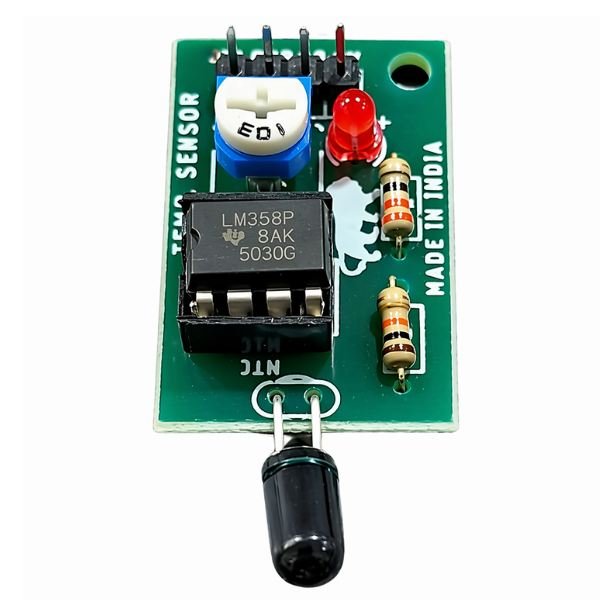

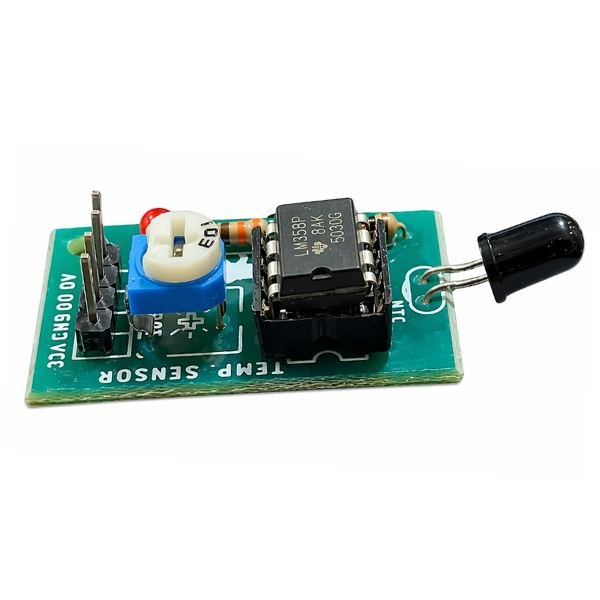

Flame and Heat Sensor Module Made in India

The Flame and Heat Sensor Module detects fire or intense heat using an infrared photodiode (a light-sensitive component that responds to infrared from flames). It runs on 3.3V to 5V DC and detects heat up to 100cm away, giving early warning. It provides both digital (high/low) and analog outputs, with sensitivity around 50 degrees for trigger response.

The flame sensor module uses a comparator circuit to convert the photodiode signal into a clean digital output. A non-obvious detail is that sunlight and bright lights emit infrared and may cause false triggers. The sensing cone is narrow, so correct alignment toward the flame is required for full detection range.

It connects to Arduino and ESP32 using standard pins. Perfect flame and heat sensor for students use it in safety project . Connect VCC, GND, and read the output. StemVolt provides this sensor with trusted quality, ensuring reliable performance and easy usability.

Related Product:

• Checkout The DHT22 Temperature and Humidity Sensor

Features

• Detection range up to 100cm allows early flame sensing before fire spreads to the sensor position
• Operating voltage from 3.3V to 5V DC connects directly to Arduino and ESP32 GPIO pins without a regulator
• Digital and analog output available simultaneously allowing both threshold alert and proportional signal reading
• flame and heat sensor onboard potentiometer allows fine adjustment of the detection sensitivity threshold

Technical specifications:

Applications

• Fire alarm project uses this sensor to detect flame presence and trigger a buzzer alert in the room
• Kitchen safety monitor uses this to detect gas stove flame and alert when burner is left on accidentally
• Flame and Heat Sensor reads fire proximity and triggers a relay to activate a water sprinkler pump
• flame detector reads analog signal intensity and maps fire distance to an Arduino LED bar graph display

Package includes:

• 1 x Flame and Heat Sensor Module
