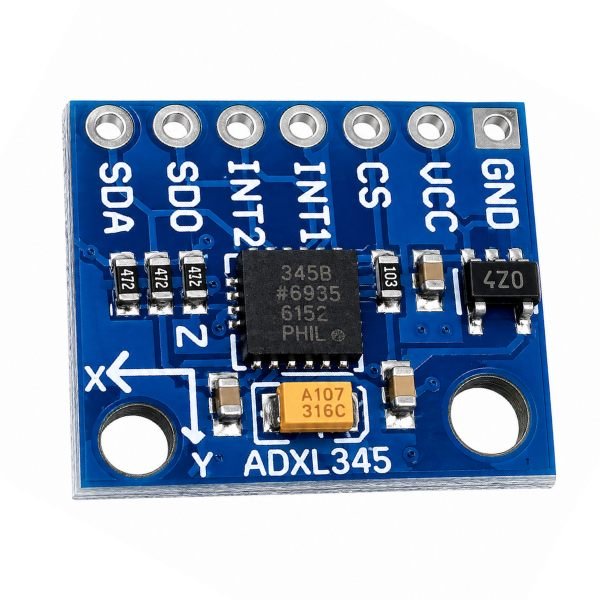

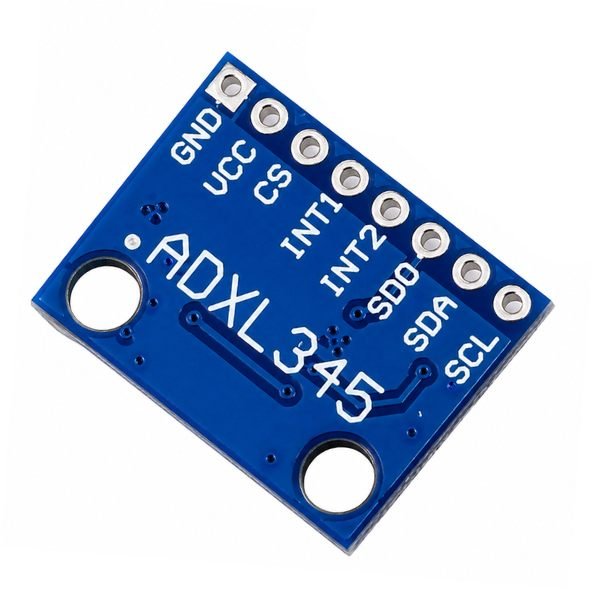

The ADXL345 Triple Axis Accelerometer Sensor Module measures acceleration along X, Y, and Z axes using the ADXL345 chip and outputs 16-bit two’s complement data. The triple axis accelerometer covers four selectable measurement ranges from plus or minus 2g up to 16g, making it usable for both low-vibration and high-impact sensing in the same project. It communicates over I2C or SPI, so you pick the interface that suits your wiring layout.
The adxl345 sensor resolution scales with the selected range, going from 10-bit at lower g settings up to 13-bit in high-resolution mode. A non-obvious detail is that at plus or minus 16g range the resolution per LSB (least significant bit) is fixed at approximately 3.9 mg, which may be too coarse for precision tilt measurement. The accelerometer sensor module runs on 3V to 6V, but its logic lines run at 3.3V internally.
Developers, and vibration monitoring engineers use the 3 axis accelerometer sensor. StemVolt provides sensors with trusted quality, ensuring reliable performance and easy usability.
Related Product:
Features:
- Output resolution of 10 to 13-bit scales automatically with the selected measurement range setting
- Measurement range switchable between plus or minus 2g and plus or minus 16g in firmware
- 16-bit two’s complement data output gives signed acceleration values readable directly over SPI or I2C
Technical specifications:
| Specification | Details |
|---|---|
| Sensor Type | ADXL345 |
| Data Output | 16-bit two’s complement |
| Operating Voltage | 3V to 6V DC |
| Measurement Range | ±2g, ±4g, ±8g, ±16g |
| Resolution | 10 to 13-bit |
| Digital Output | I2C and SPI |
Applications:
- Self-balancing robot uses ADXL345 Triple Axis Accelerometer Sensor Module to measure tilt angle on all three axes
- Wearable fitness tracker reads 3-axis acceleration data to count steps and detect fall events accurately
- Drone stabilisation controller reads real-time tilt data and feeds corrections into the flight control loop
- Earthquake data logger uses adxl345 triple axis sensor to capture ground acceleration spikes during seismic events
Package includes:
- 1 x ADXL345 Triple Axis Accelerometer Sensor Module
